Photovoltaic Direct Drive EC Motor 380V 750W 850RPM

EC Motor Detailed Information:

Product ID	HFC—F380P075S085
Certification	ISO9001, CE, Patent certificate
Motor Parameter Specification:
Voltage(V)	380VAC~440VAC +/-15%
Rated Power(Kw)	0.75
Output Current(A)	1.6
Rated Speed(RPM)	0~850
Control Mode	FOC
Working Duty	S1
Communication Protocol	Modbus
Overload Ability	150% rated current last 60s
Operational Control Characteristic:
Control Mode	SVC,FVC,V/F, Speed control, Torque control
Speed Adjustable Range	1:100
Speed Stability Accuracy	±0.2%
Torque Control Accuracy	5%
Starting Torque	0.25Hz：150%（Vector control）

EC Motor Product Description

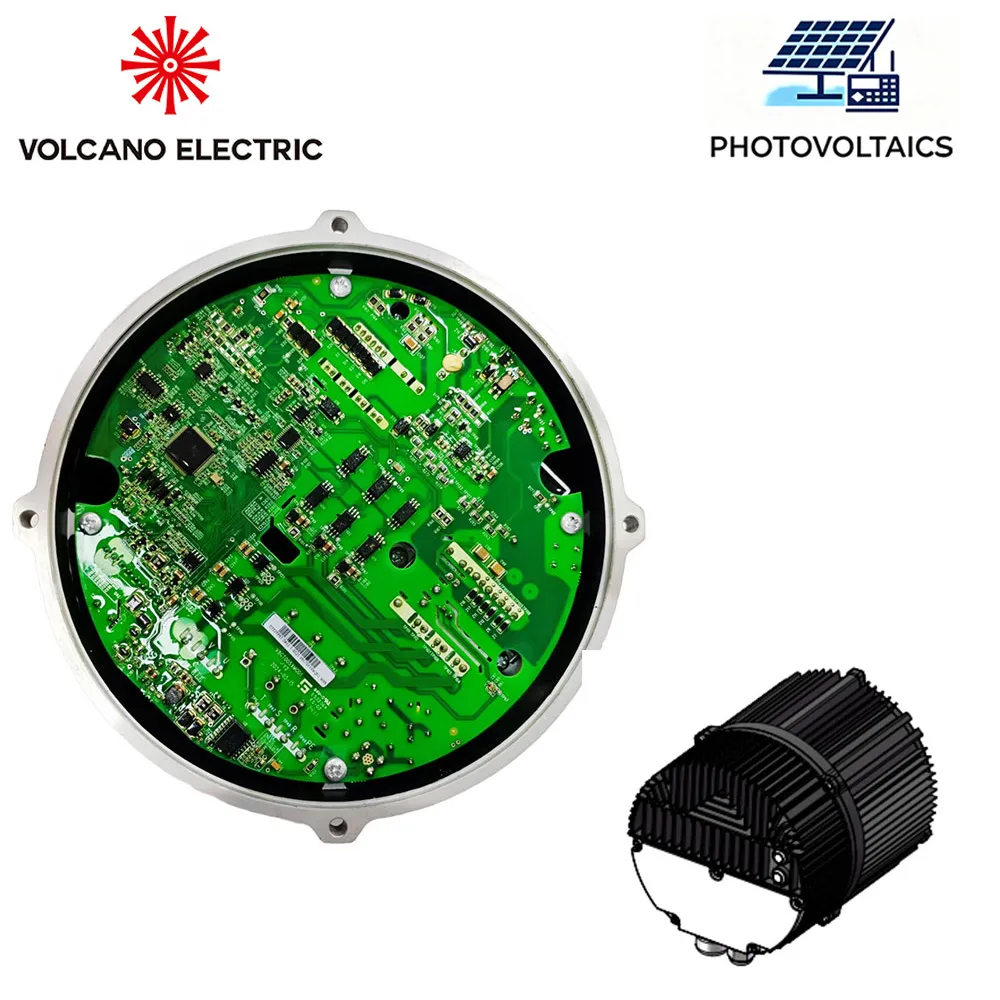

EC motors are DC brushless motors that are controlled by external electronic circuit board. This provides greater control and higher efficiency.

As for the model HFC—F380P075S085 integrated in the BLDC/PMSM motor body, used in permanent magnet synchronous motor design scheme, widely used in fan application. It is suitable for the high voltage fluctuation range of 380VAC~440VAC+-15%.

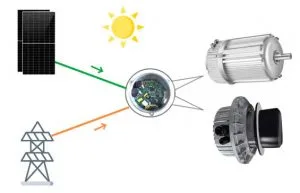

With our professional BLDC control technologies, all of our EC motors can be solar power energized:

There are three types of power operation way:

Solar power directly drives.
Solar power and AC power hybrid drives.
AC power drives only.

With the rapid development of science and technology, energy conservation and environmental protection have become a global consensus. Based on this situation, EC motors, a new type of green energy equipment, are gradually emerging. Among many motor types, EC motors have become the focus of attention for their excellent performance and wide range of applications.

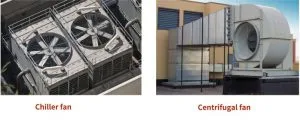

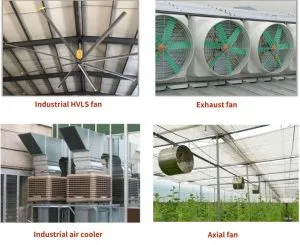

The application field of EC motor has been very wide, such as industrial automation, indoor logistics, medical technology, door system and other fields, EC motor can play an excellent performance and excellent efficiency, and EC motor also has the characteristics of easy maintenance, energy saving and efficient, so now EC motor has gradually replaced the traditional motor, become the new mainstream energy power.

If you have interesting for this controller, please feel free to contact us by info@volcanomotors.com . Please feel free to contact us to better select customized controller for you.
