Product Specifications
| Brand Name: | Volcano Electric | Model Number: | BLDC0.25-62 | Type: | Permanent Magnet Motor |
| Output Power: | 150W-350W | Voltage: | 12VDC,24VDC,36VDC,48VDC,70VDC…Low voltage | Speed Range: | 3000-10000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F |
| Enclosure: | IP44/IP54/IP68… | Poles: | 4P, 6P, 8P,10P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | over 90% | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | OEM |
| Application: | Textile machinery, packing machine, automatic conveyor belt. Medical machine etc. | ||||
Any one of the below requirements, you have to choose a reasonable permanent magnet motors.
- Variable speed application
- Require High Start Torque
- Low /High speed application
- Minimize Motor size demands
- Customized Speed, work at any defined speed, ( the rated speed of AC motor is limited, 2 poles-3000RPM, 4 poles -1500RPM @50HZ, 2 poles-3600RPM, 4 poles -1800RPM @60HZ)
- Battery driven required
Product Description

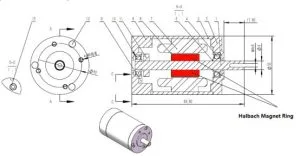

PMSM motor structure as following:
The rotor is made by sintered neodymium Magnet halbach ring, the magnetic force is almost 3 times of bond magnet rotor. The magnetic density is stronger, and it can reduce the coils of stator.
Hence, you can get the following benefits with this Low voltage Permanent magnet Motor.
- Minimized Motor size. ( smaller than conventional motors), achieve high output power in small motor frame
- Start –stop faster
- Minimize the copper loss
- Premium efficiency, ≈90%
- Can be equipped with the encoder to achieve servo control
- Economic benefits, high cost-effective
This Low voltage Permanent magnet Motor, by customer’s requirements, the input voltage can be adjusted at defined voltage, whatever the low voltage or high voltage, thus require for a proper offer, please inform us your available voltage, then we can offer accordingly.

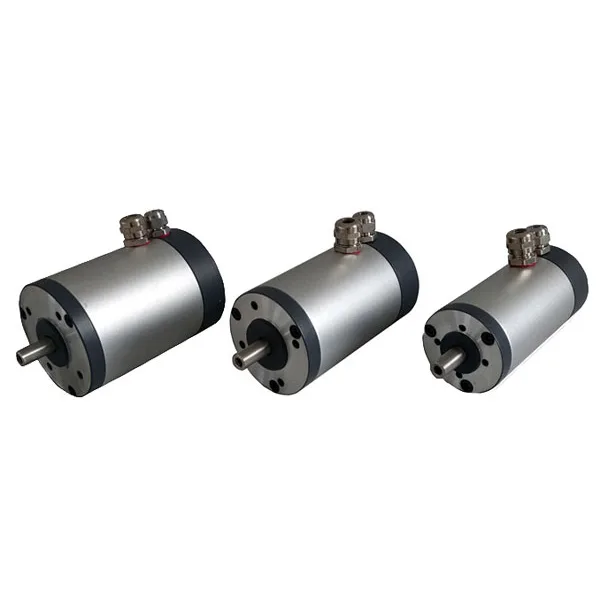

In Volcano Electric, we have three main mechanical specifications on this quantum series permanent magnet motors, the diameter is 42mm / 52mm/ 62mm, our engineer will advice a proper one by your various application. With low cogging torque, it can be used in the applications which use brushless DC motors. what’s more, High precision servo application can be realized with the encoder.
This Low voltage Permanent magnet Motor can be used in bobbin winder automatic system, Double twisting machine, looms machine, packing machine, and automatic conveyor belt. Medical machine etc. The motor is replacing the conventional AC Induction motor. The efficiency of the Low voltage Permanent magnet Motors are increased almost 8%-15%. And because of 10 poles systems, the motor starting is much faster on the line. For more specifications on this leading motors, please contact our technical team by email info@volcanomotors.com
Basic Parameter of the quantum series PMSM motors
| Motor Model | PMSM-42 | PMSM-52 | PMSM-62 |
| Supply Voltage-Un | 12V,24V,36V,48V,60V,72V,110V,220V,380V | ||
| Insulation Voltage | 8xUn, during time>3 Sec | ||
| Insulation Class | F | ||
| Efficiency | 90% | 90% | 92% |
| Speed | 3000~12000RPM | ||
| Running Torque | 0.03~0.26NM | 0.05~0.3NM | 0.15~0.3NM |
| Power Output | 30~80W | 50~180W | 150~350W |
| IP Standard | IP44 (IP 68 Optional) | ||
| Life Expectancy | 3 Years continous Pperation | ||
| Ambient Temperature | -15℃~40℃ Continous Operation | ||
Advantages of Brushless DC motors
- Lower maintenance and longer lifetime- no brush and commutator erosion
- Lower noise-the elimination of brush contact
- Higher power to weight ratio
- Higher efficiency ( in general higher than 90%)
- Lower temperature rise-more efficient heat dissipation due to winding construction
- Reduction of EMI
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
