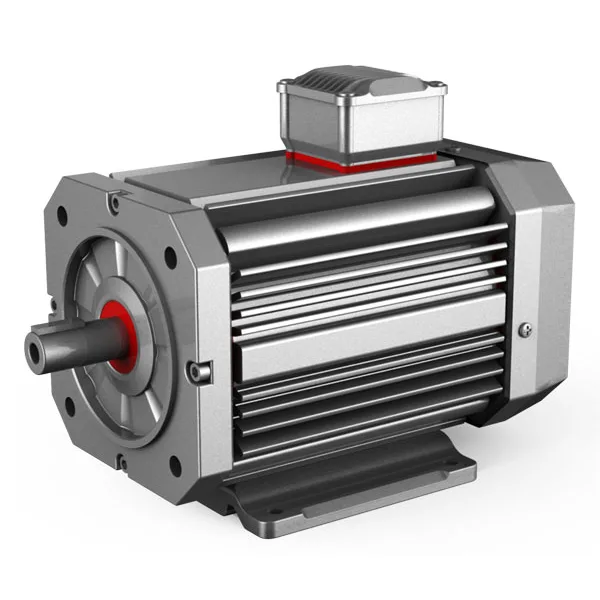

Product Specifications
| Brand Name: | Volcano Electric | Model Number: | IEC 0.7-71 | Type: | IEC Motors |
| Output Power: | 1/2 HP (700W) | Voltage: | 180VDC, 230/460V/220/380 AC are available | Speed Range: | 1800 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F/H |
| Enclosure: | IP44 / IP54 / IP56, IP65, IP66, IPW56, IPW65 or IPW66 | Poles: | 2P, 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum Frames / cast iron frames | Efficiency: | IE2, IE3 or IE4 efficiency classes | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / NEMA standard |
| Application: | pulp and paper, lumber, aggregates, mining, steel, textile, food, chemical, and oil and gas industries | ||||
Product Description
For harsh operating environments in the pulp and paper, wood, aggregate, mining, steel, textile, food, chemical, and oil and gas industries, Volcano Electric offers BLDC IEC motors. These IEC motors can also be used in AC conditions with built-in AC-DC converters.
Metric motors are also available with aluminum frames and manufactured to the same IEC standards. Power ranges range from 0.75 to 18.5 kW, frame sizes range from 71 to 160 mm, and speed ranges are available in single-pole, two-pole, four-pole, or six-pole configurations.
These motors fully comply with IEC 60034, 60038, 60072, EI3, and IE2 regulations.
For more information on our IEC motor products, please contact our engineers online.
SOME OF Metric IEC MOTORS
| Power KW/HP |
Speed RPM |
Voltage* DC |
Load Amps |
IEC Frame |
| 0.25/1/3 | 1800 | 180 | 1.7 | 71 |
| 0.7/1/2 | 3000 | 180 | 2.5 | 71 |
| 0.7/1/2 | 1800 | 180 | 2.5 | 71 |
| 0.55/3/4 | 3000 | 180 | 3.6 | 71 |
| 0.55/3/4 | 1800 | 180 | 3.5 | 80 |
| 0.75/1 | 3000 | 180 | 4.9 | 80 |
| 0.75/1 | 1800 | 180 | 4.6 | 80 |
| 1.1/1.5 | 3000 | 180 | 7.1 | 80 |
| 1.1/1.5 | 1800 | 180 | 7 | 80 |
| 1.1/1.5 | 1800 | 180 | 7.5 | 90L |
| 1.5/2 | 3000 | 180 | 10 | 90L |
| 1.5/2 | 1800 | 180 | 9.5 | 90L |
| 2.2/3 | 3000 | 180 | 16 | 90L |
| 2.2/3 | 1800 | 180 | 14 | 112M |
Voltage* :These IEC motors are also available for AC condition, please notify your voltage availabe in advance
IEC MOTOR FRAME SPECIFICATIONS
| IEC MOTOR FRAME SPECIFICATIONS | |||||
| Frame | Rated Power | H | A | B | L |
| 71 | 370w-1.5kw | 71 | 112 | 90 | 250-270 |
| 80 | 370W-2.2KW | 80 | 125 | 100 | 275-300 |
| 90 | 370W-3KW | 90 | 140 | 125 | 335-350 |
| 100 | 370W-4.5KW | 100 | 160 | 140 | 365-400 |
| 112 | 370W-5.5KW | 112 | 190 | 140 | 395-420 |
NEMA MOTOR FRAME SPECIFICATIONS
| NEMA MOTOR FRAME SPECIFICATIONS | |||||
| Frame | Rated Power | H | A | B | L |
| 143T | 370w-1.5kw | 3.5 | 2.7 | 2 | 12.5 |
| 145T | 370W-2.2KW | 3.5 | 2.7 | 2.5 | 13.5 |
| 182T | 370W-3KW | 4.5 | 3.7 | 2.25 | 15.3 |
| 184T | 370W-4.5KW | 4.5 | 3.7 | 2.75 | 16 |
| 213T | 370W-5.5KW | 5.25 | 4.2 | 2.75 | 19 |
Customized Motors
Besides of the standard IEC Motors, Volcano Electric can offer customized motor and supplier comprehensive solutions of your whole system, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
