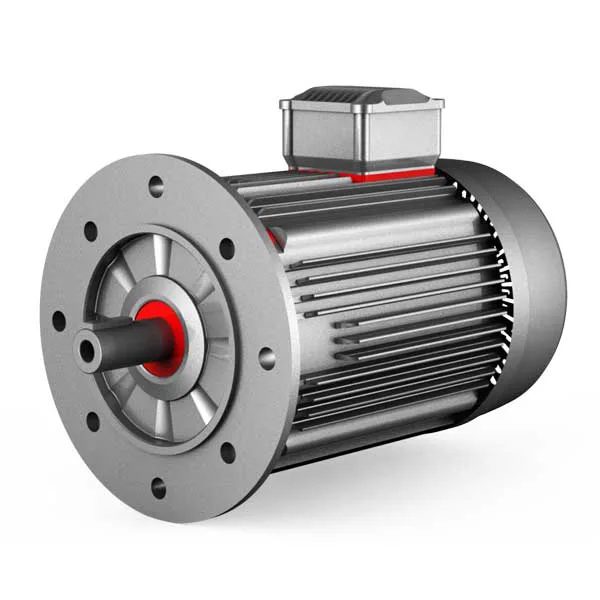

Product Specifications
| Brand Name: | Volcano Electric | Model Number: | IEC 1.5-90 | Type: | IEC Vertical Motors |
| Output Power: | 2 HP (1500W) | Voltage: | 180VDC, 230/460V/220/380 AC are available | Speed Range: | 3000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F/H |
| Enclosure: | IP55, IP65, IP66 | Poles: | 2P, 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum Frames / cast iron frames | Efficiency: | IE2, IE3 or IE4 efficiency classes | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / NEMA standard |
| Application: | pulp and paper, lumber, aggregates, mining, steel, textile, food, chemical, and oil and gas industries | ||||
Product Description
Volcano Electric offers a wide variety of metric IEC motors with improved efficiency and lifecycle value. Our motors are suitable for a wide range of industries and applications.
Volcano Motor technology continues to push the performance curve of brushless DC motors. Brushless DC motors offer superior torque and speed, increased efficiency, and package sizes tailored to your needs, meeting the most stringent requirements. These brushless motors provide excellent speed and position control, long life, and high torque density. Slotless motors utilize cylindrical ironless coils manufactured using the same process as ironless DC motors, while slotted motors utilize the latest lamination and winding technology in their stators. The unique design of both slotted and slotless motors offers several key benefits:
High motion efficiency
Ability to withstand harsh environments
Extended motor life
High acceleration
High power-to-weight ratio
These brushless DC motors excel in environments requiring precision and durability.
SOME OF Metric IEC MOTORS
| Power KW/HP |
Speed RPM |
Voltage* DC |
Load Amps |
IEC Frame |
| 0.25/1/3 | 1800 | 180 | 1.7 | 71 |
| 0.7/1/2 | 3000 | 180 | 2.5 | 71 |
| 0.7/1/2 | 1800 | 180 | 2.5 | 71 |
| 0.55/3/4 | 3000 | 180 | 3.6 | 71 |
| 0.55/3/4 | 1800 | 180 | 3.5 | 80 |
| 0.75/1 | 3000 | 180 | 4.9 | 80 |
| 0.75/1 | 1800 | 180 | 4.6 | 80 |
| 1.1/1.5 | 3000 | 180 | 7.1 | 80 |
| 1.1/1.5 | 1800 | 180 | 7 | 80 |
| 1.1/1.5 | 1800 | 180 | 7.5 | 90L |
| 1.5/2 | 3000 | 180 | 10 | 90L |
| 1.5/2 | 1800 | 180 | 9.5 | 90L |
| 2.2/3 | 3000 | 180 | 16 | 90L |
| 2.2/3 | 1800 | 180 | 14 | 112M |
Voltage* :These IEC motors are also available for AC condition, please notify your voltage availabe in advance
IEC MOTOR FRAME SPECIFICATIONS
| IEC MOTOR FRAME SPECIFICATIONS | |||||
| Frame | Rated Power | H | A | B | L |
| 71 | 370w-1.5kw | 71 | 112 | 90 | 250-270 |
| 80 | 370W-2.2KW | 80 | 125 | 100 | 275-300 |
| 90 | 370W-3KW | 90 | 140 | 125 | 335-350 |
| 100 | 370W-4.5KW | 100 | 160 | 140 | 365-400 |
| 112 | 370W-5.5KW | 112 | 190 | 140 | 395-420 |
NEMA MOTOR FRAME SPECIFICATIONS
| NEMA MOTOR FRAME SPECIFICATIONS | |||||
| Frame | Rated Power | H | A | B | L |
| 143T | 370w-1.5kw | 3.5 | 2.7 | 2 | 12.5 |
| 145T | 370W-2.2KW | 3.5 | 2.7 | 2.5 | 13.5 |
| 182T | 370W-3KW | 4.5 | 3.7 | 2.25 | 15.3 |
| 184T | 370W-4.5KW | 4.5 | 3.7 | 2.75 | 16 |
| 213T | 370W-5.5KW | 5.25 | 4.2 | 2.75 | 19 |
Customized Motors
Besides of the standard IEC Motors, Volcano Electric can offer customized motor and supplier comprehensive solutions of your whole system, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
