Product Specifications
| Brand Name: | Volcano Electric | Model Number: | IEC 1.5-80 | Type: | PMSM Motors |
| Output Power: | 1.5KW (2HP) | Voltage: | 12V,24V,48V,72V,110VAC,220VAC are available | Speed Range: | 1500 RPM, 3000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F/H |
| Enclosure: | IP54 | Poles: | 2P, 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum Frame | Efficiency: | IE2, IE3 or IE4 efficiency classes | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard PMSM motors |
| Application: | Pumps, mining, steel, textile, food, chemical, and oil and gas industries, specific applications | ||||
Product Description
The permanent magnet brushless dc motors are compatible with following application requirements:
1. Variable speed application
2. High start torque
3. Low /High speed application
4. Minimize Motor size demands
5. Customized speed, work at any defined speed, ( the rated speed of AC motor is limited, 2 poles-3000RPM, 4 poles -1500RPM @50HZ, 2 poles-3600RPM, 4 poles -1800RPM @60HZ)
Below are just a few of the benefits of brushless DC motors:
- Durable and long lasting
- Highly efficient with less wasted heat
- Lightweight and compact
- More reliable and simpler to maintain
- Silent and spark-free
- Perfect for use in smaller devices
- Less expensive to manufacture
- Higher torque-to-size ratio
In volcano Electric, the compatible motor drivers are available with the standard motors that you can buy both motor and controllers one-stop. All the motors and controllers are debugged before dispatching, that we guarantee the whole system can work smoothly. Hence, it helps to avoid the dispute the motor and controller from various suppliers. Thus if you need our drivers, please indicate in advance with our sales representative.
Standard Frame 80 Motors 1500W Available
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Efficiency | Noise | IP Class | Frame |
| KW | V | A | RPM | N.m | % | dB | |||
| VOL-BL15A24 | 1.5 | 24 | 67.93 | 1500 | 9.55 | 92 | 62 | IP 54 | 80L |
| VOL-BL15A48 | 1.5 | 48 | 33.97 | 1500 | 9.55 | 92 | 62 | IP 54 | 80L |
| VOL-BL15A72 | 1.5 | 72 | 22.64 | 1500 | 9.55 | 92 | 62 | IP 54 | 80L |
| VOL-BL15A110 | 1.5 | 110 | 8.56 | 1500 | 9.55 | 92 | 62 | IP 54 | 80L |
| VOL-BL15A220 | 1.5 | 220 | 4.28 | 1500 | 9.55 | 92 | 62 | IP 54 | 80L |
| VOL-BL15A380 | 1.5 | 380 | 2.48 | 1500 | 9.55 | 92 | 62 | IP 54 | 80L |
| VOL-BL15B24 | 1.5 | 24 | 67.93 | 3000 | 4.78 | 92 | 62 | IP 54 | 80S |
| VOL-BL15B48 | 1.5 | 48 | 33.97 | 3000 | 4.78 | 92 | 62 | IP 54 | 80S |
| VOL-BL15B72 | 1.5 | 72 | 22.64 | 3000 | 4.78 | 92 | 62 | IP 54 | 80S |
| VOL-BL15B110 | 1.5 | 110 | 8.56 | 3000 | 4.78 | 92 | 62 | IP 54 | 80S |
| VOL-BL15B220 | 1.5 | 220 | 4.28 | 3000 | 4.78 | 92 | 62 | IP 54 | 80S |
| VOL-BL15B380 | 1.5 | 380 | 2.48 | 3000 | 4.78 | 92 | 62 | IP 54 | 80S |

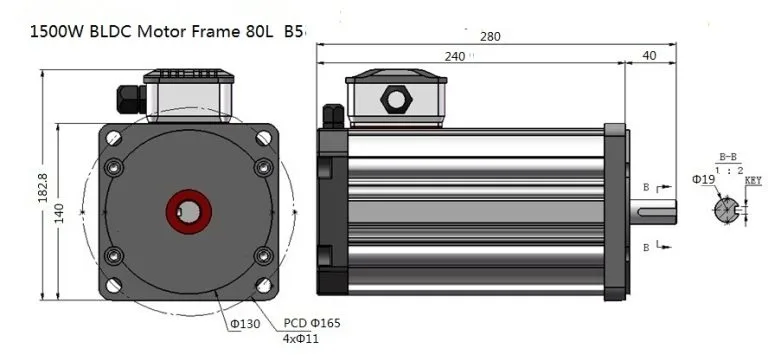

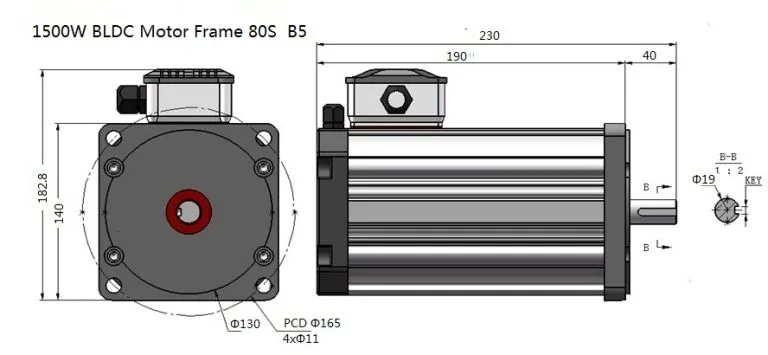

Configuration
IEC MOTOR FRAME SPECIFICATIONS
| Standard IEC Frame Motor | |||||
| Frame | Rated Power | H | A | B | L |
| 63 | 200W-750W | 63 | 100 | 80 | 130-170 |
| 71 | 370w-1.5kw | 71 | 112 | 90 | 162-222 |
| 80 | 370W-2.2KW | 80 | 125 | 100 | 190-262 |
| 90 | 370W-3KW | 90 | 140 | 125 | 190-282 |
| 100 | 370W-4.5KW | 100 | 160 | 140 | 242-332 |
| 112 | 370W-5.5KW | 112 | 190 | 140 | 262-362 |
Customized Motors
Besides of the standard IEC Motors, Volcano Electric can offer customized motor and supplier comprehensive solutions of your whole system, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
