Product Specifications
| Brand Name: | Volcano Electric | Model Number: | IE4.0 PM Motors | Type: | Permanent Magnet Motors |
| Output Power: | 100W-3.75KW | Voltage: | 220Vac, 380Vac | Speed Range: | 1500RPM,3000RPM,1000RPM |
| Controller: | Standard & Customized, Optional | Braker: | Optional | Insulation Class: | Class F/H |
| Enclosure: | IP54 | Poles: | 2P,3P,4P,… | Wire: | 100% copper |
| Housing: | Aluminum Frame | Efficiency: | IE3 or IE4 efficiency classes | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard PMSM motors |
| Application: | Electric Vehicles, mining, steel, textile, food, chemical, and oil and gas industries, automated guided vehicle, specific applications | ||||
Product Description

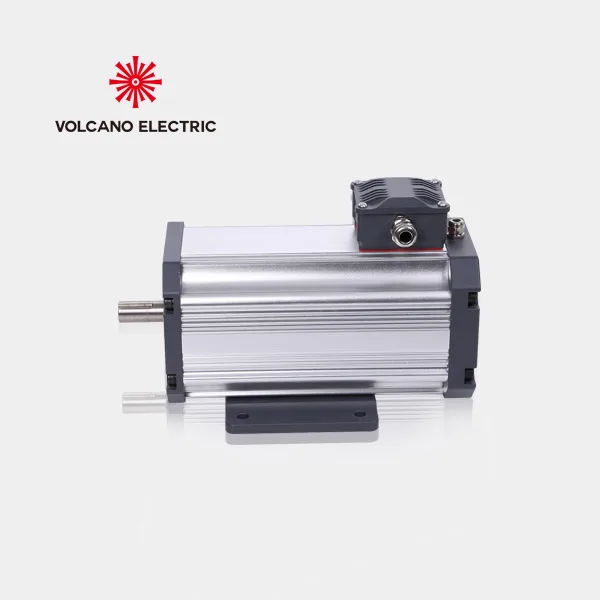

SUPER PREMIUM EFFICIENCY Permanent Magnet Motors are the regular motors we are offering now. These motors are designed strictly with IEC motors. The motor power, speed and motor frame size are strictly matched. Hence these motors can replace conventional induction AC motors freely.
The Features of these SUPER PREMIUM EFFICIENCY Permanent Magnet Motors
1, High magnetic energy material taken, plus the rotor is assembled with strong NdFeB magnets, which enhance motor’s energy density, and efficiency can reach 85% generally and even some motors can be up to 92% .
2, Low noise
3, Low temperature rising, because of the higher efficiency, the loss of heat from the motor is less, In addition, our unique heat dissipation design of the house, it help to heat dissipate quickly. Compared to conventional AC motors, the temperature rising is much better.
The application of these SUPER PREMIUM EFFICIENCY Permanent Magnet Motors
Generally these PM motors together with our motor controller, it is a better option to replace VFD(variable speed driver) with AC motors.
1, Water pumps. There are a number of water pumps available used in a variety of applications from water irrigation to swimming pools. No matter what is the pump application we need to match. The motor output to the water pump. In other words ,if the water pump is designed for 2000 rpm at a given head pressure, the speed and torque of the motor must match that of the pump for optimum system efficiency
2,Air blower motors. These are mainly used cooling systems and again we need to match the motor performance to the fan blade characteristics . Every fan blade would have a speed at which it operates more efficiently . This point has to match with the highest efficiency point of motor, at the same speed.
3, Hydraulic pumps. There is a variety of applications that the motors are driving. Hydraulic pumps to achieve high pressure .These include a number of earth moving machinery , diggers and bulldozers . As well as raising and lowering working platform’s. Selling to companies producing hydraulic
4,Electric vehicles. This applications require high start torque and variable speed.
…
The outline size and install dimension is same to the AC motors that you can easily use our IEC standard Motors in various applications.
IEC Standard PM motors list
| Type | Output | Speed | Rated Torque | Efficiency | Frame Size | Mounting | |||
| KW | HP | RPM | NM | % | B3 | B5 | B14 | ||
| VOL-IEC63S200-2P | 0.2 | 1/4 | 3000 | 0.64 | 90 | 63S | Yes | Yes | Yes |
| VOL-IEC63S200-4P | 0.2 | 1/4 | 1500 | 1.27 | 90 | 63S | Yes | Yes | Yes |
| VOL-IEC71S187-6P | 0.187 | 1/4 | 1000 | 1.78 | 90 | 71S | Yes | Yes | Yes |
| VOL-IEC71S375-2P | 0.375 | 1/2 | 3000 | 1.19 | 90 | 71S | Yes | Yes | Yes |
| VOL-IEC71S375-4P | 0.375 | 1/2 | 1500 | 2.38 | 90 | 71S | Yes | Yes | Yes |
| VOL-IEC80S375-6P | 0.375 | 1/2 | 1000 | 3.58 | 90 | 80S | Yes | Yes | Yes |
| VOL-IEC80S750-2P | 0.75 | 1 | 3000 | 2.38 | 90 | 80S | Yes | Yes | Yes |
| VOL-IEC80S750-4P | 0.75 | 1 | 1500 | 4.78 | 90 | 80S | Yes | Yes | Yes |
| VOL-IEC90S750-6P | 0.75 | 1 | 1000 | 7.16 | 90 | 90S | Yes | Yes | Yes |
| VOL-IEC90S1500-2P | 1.5 | 2 | 3000 | 4.78 | 92 | 90S | Yes | Yes | Yes |
| VOL-IEC90S1500-4P | 1.5 | 2 | 1500 | 9.55 | 92 | 90S | Yes | Yes | Yes |
| VOL-IEC100S1500-6P | 1.5 | 2 | 1000 | 14.33 | 92 | 100S | Yes | Yes | Yes |
| VOL-IEC90S2250-2P | 2.25 | 3 | 3000 | 7.16 | 92 | 90S | Yes | Yes | Yes |
| VOL-IEC100S2250-4P | 2.25 | 3 | 1500 | 14.33 | 92 | 100S | Yes | Yes | Yes |
| VOL-IEC112S2250-6P | 2.25 | 3 | 1000 | 21.48 | 92 | 112S | Yes | Yes | Yes |
| VOL-IEC112S3750-2P | 3.75 | 5 | 3000 | 11.94 | 92.5 | 112S | Yes | Yes | Yes |
| VOL-IEC112S3750-4P | 3.75 | 5 | 1500 | 23.88 | 92.5 | 112S | Yes | Yes | Yes |
Customized Motors
Besides of the standard IEC Motors, Volcano Electric can offer customized motor and supplier comprehensive solutions of your whole system, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
