Product Specifications
| Product ID | HFC-HS050 |
| Certification | ISO9001, CE, Patent certificate |
| Motor Parameter Specification: | |
| Voltage(V) | 220Vac / 380Vac |
| Rated Power(Kw) | 0.7~2.2(220) ; 0.7~315(380) |
| Output Current(A) | 5~11(220) ; 2.5~600(380) |
| Carrier Frequency(kHz) | 0.5kHz～16kHz |
| Speed Range | 1:100(SVC) ; 1:1000(FVC) |
| Speed Stability Accuracy | ±0.5%(SVC) ; ±0.02%(FVC) |
| Ambient Temperature | -10℃~40℃ |
Product Description

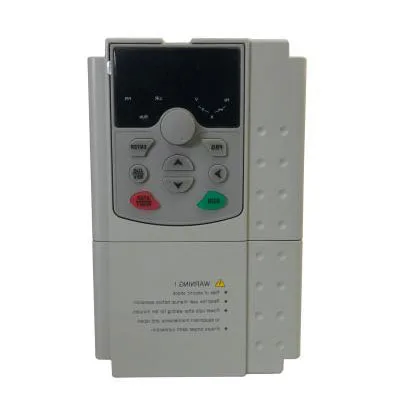

HFC-HS050 is for high voltage use, applicable to 220Vac single-phase and 380Vac three-phase motors. Also can use for 310vdc or 540vdc. It can adapt to the power in the range of 0.7 kW to 315 kW, and the power at 220Vac is only applicable to 0.7 kW to 2.2 kW. Suitable for most high-power motors under high voltage. Also Have LED display, key locking and function selection and protection functions.
The driver/controller can control the motor to run at most 16 speed through built-in simple PLC or control terminal. Built-in PID can conveniently realize the closed-loop control system of process control. In addition, it also has many functions such as automatic voltage adjustment (AVR), over-voltage and over-current loss speed control, fast current limiting function, torque limitation and control, lack of phase protection, over-current protection, over-voltage protection, under-voltage protection, overheating protection, overload protection and so on.
The driver/controller can also have personalized functions such as instantaneous stop, fast current limit, virtual IO, timing control, multi-motor switching, multi-coding support and multi-thread bus support, and has strong scalability. The application environment is mainly indoor, free from direct sunlight, dust, corrosive gas, flammable gas, etc. The driver can accept the ambient temperature of-10℃ ~+40℃ and the storage temperature of-20℃ ~+60℃.
If you have interesting for this controller, please feel free to contact us by info@volcanomotors.com Please feel free to contact us to better select customized controller for you.

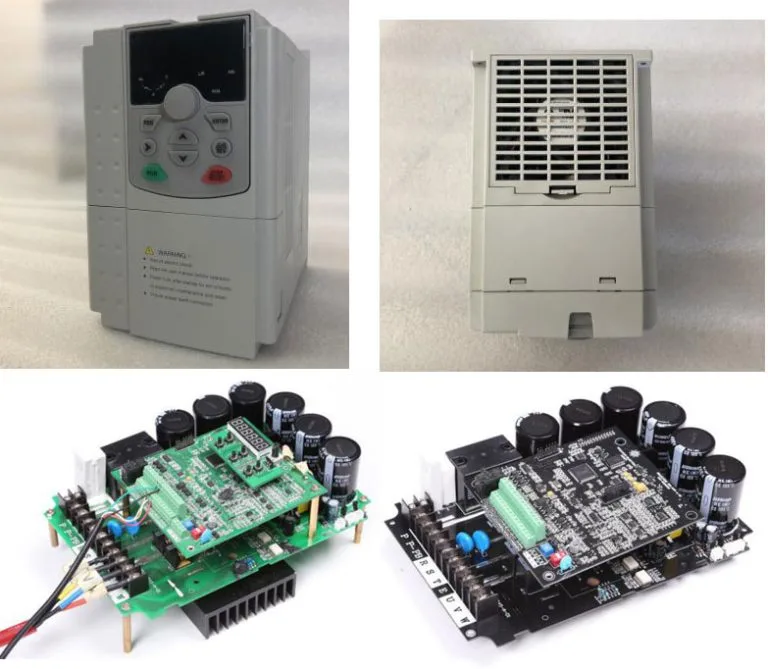

Application:
Advantages of our Controller:
- Lower price
- Faster batch delivery time
- Special function customization
- Reliable quality
For customized Driver, please contact our technician. Ordinary, we have to know the following information to get a professional proposal:
- Required functions.
- Application
- Special component requirements
