Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-D90W23P10R14 | Type: | Brushless DC Motor |
| Output Power: | 150W | DC Voltage: | 220Vac | Speed Range: | 1400 RPM |
| Controller: | Customized, Optional | Construction: | Permanent magnet | Insulation Class: | Class F |
| Commutation: | Brushless | Current: | 1.86A | Sensor: | none |
| Enclosure: | IP65 | Poles: | 10P | Wire: | 100% Copper Coil |
| Housing: | Iron frame | Efficiency: | 78% | Certification | 3C, CE, UL |
| Duty: | S1 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | BLDC motor |
| Application: | Air Cooler, Air Cooling Fan, Cooler | ||||

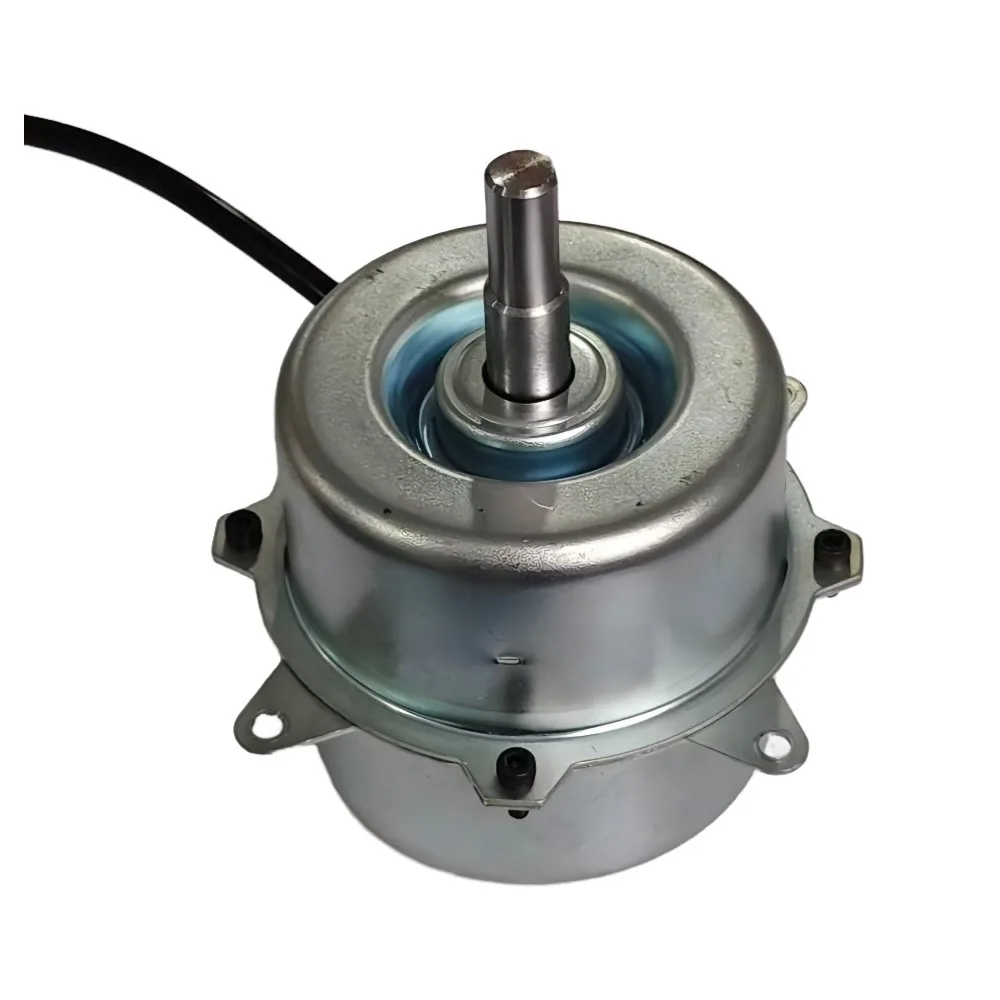

Product Description
Our BLDC air cooler motor technology, utilizes NdFeb permanent magnets, is the significative advancement in air cooler motor development. Compared to the conventional ferrimagnetic induction motors, our D90 series BLDC motors demonstrate a more compact stator and rotor structure as well as an effective winding process. This creative design conserves non-ferrous metals like copper, iron and aluminium, and improves work efficiency.
Due to the lack of brushes – a common wear element, they provide increased dependability with a tool time life of 10,000-20,000 hours (2-3 times more than conventional brushed motors) – making them less likely to require maintenance. And in applications where air coolers are on several hours a day—like at industrial shops, commercial facilities—they can save you 20% to 40% on cooling costs versus traditional setups.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.
Application
Configuration
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| W | V | A | RPM | N.m | % | dB | ||
| VOL-D90W20R14 | 120 | 210-230 | 1.8 | 1400 | 0.9 | 10 | 78 | 60 |
| VOL-D90W23R14 | 150 | 210-230 | 1.86 | 1400 | 1.2 | 10 | 78 | 60 |
| VOL-D90W26R14 | 230 | 210-230 | 2 | 1400 | 1.8 | 10 | 78 | 60 |
| VOL-D90W26R16 | 270 | 210-230 | 2.4 | 1600 | 2 | 10 | 82 | 60 |
| VOL-D90W30R16 | 320 | 210-230 | 2.8 | 1600 | 2.1 | 10 | 82 | 60 |
Advantages of Brushless DC motors
- Lower maintenance costs and longer life – no brush and commutator erosion
- Precise speed control
- Wide speed range- no limit of brushes and commutator
- Higher power-to-weight ratio
- Lower temperature rise-more efficient heat dissipation due to winding construction
- Simple structure
- Low noise- the elimination of brush contact
- High efficiency( in general higher than 80%)
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 220V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
