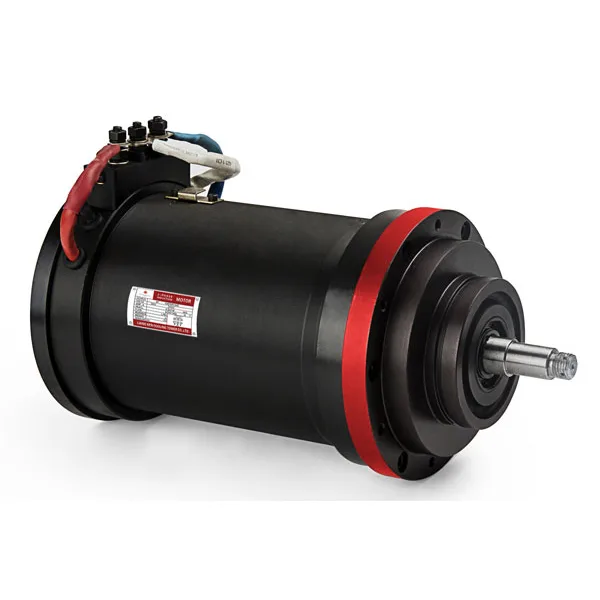

Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.5/90-126 | Type: | Brushed DC motor |
| Output Power: | 500W | DC Voltage: | 90V | Speed Range: | 1000-3300 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | Fan: | Optional |
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description
Brushed motors are a common type of direct current (DC) motor that has been widely used in various applications for decades, valued for their simplicity, cost-effectiveness, and reliable performance.A Brush DC Motor generally tends to have increased maintenance requirements in comparison to those of AC motors, because many of the motor’s components are constantly interacting with one another. Over time, the brushes will wear and will require replacement.
The life of the brushes, bearings, and gearbox (if used) all play a role in the longevity of a Brushed DC Motor. Most commonly, Brushed DC Motor life expectancies range from 2,000 to 5,000 hours, of operation, Our brushed DC motors in volcano Electric, the life expectancies range would reach t0 10,000 hours of operation, although actual service life varies. Brushed DC Motor design, operating current, speed, voltage, and other conditions are all contributing factors.

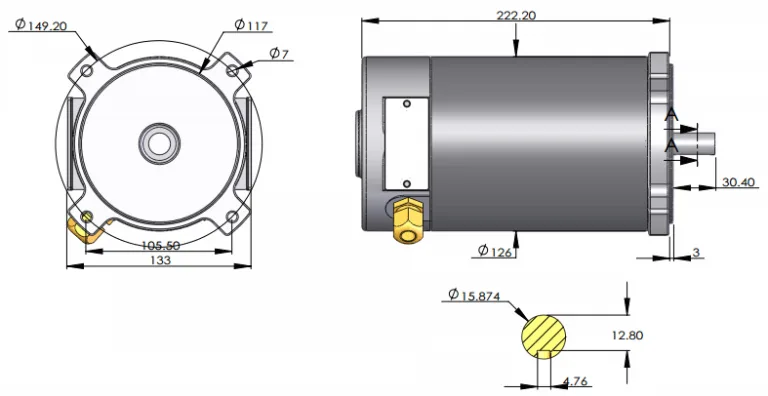

Our optimized design help to replace the brushes very easily, as you can see in the drawing bellow. Which can also help to reduce the maintenance fee.
DC0.5/90-126 which is 1600rpm 500W 90V Brushed DC Motor the motor diameter is 126mm, of course, the length can be designed by various output power, torque.
The voltage 90V, can be optimized according to your voltage condition when motor designing, Generally, only voltages available, we can produce. Thus when you contact for motor inquiry, be sure to tell us your battery available.
Detailed Images

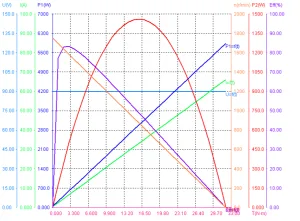

Performance of 500W 90V 1600rpm Brushed DC Motor
Brushed motor list
| Sort | Voltage | Speed | Output | Load | Torque |
| (V) | (RPM) | (W) | (A) | (Nm) | |
| DC0.37/12-126 | 12 | 1700 | 370 | 35 | 2.07 |
| DC0.54/12-126 | 12 | 1500 | 540 | 55 | 3.3 |
| DC0.375/12-126 | 12 | 1200 | 375 | 39 | 2.98 |
| DC0.75/24-126 | 24 | 3500 | 750 | 38 | 2.04 |
| DC0.54/24-126 | 24 | 2500 | 540 | 29 | 1.98 |
| DC0.54B/24-126 | 24 | 2000 | 540 | 29 | 2.8 |
| DC0.37/24-126 | 24 | 1700 | 370 | 19 | 2.07 |
| DC0.54C/24-126 | 24 | 1500 | 540 | 31 | 3.43 |
| DC0.4/24-126 | 24 | 1200 | 400 | 21 | 3.18 |
| DC0.37/27-126 | 27 | 1500 | 370 | 16 | 2.35 |
| DC0.37/29-126 | 29 | 1100 | 370 | 15 | 3.21 |
| DC0.375/42-126 | 42 | 1400 | 375 | 11 | 2.55 |
| DC0.54/48-126 | 48 | 2000 | 540 | 14 | 2.8 |
| DC0.54B/48-126 | 48 | 1700 | 540 | 13 | 3.03 |
| DC0.375/48-126 | 48 | 1500 | 375 | 9 | 2.38 |
| DC0.54/60-126 | 60 | 1800 | 540 | 11 | 2.86 |
| DC0.54B/60-126 | 60 | 1500 | 540 | 9 | 3.43 |
| DC0.54/74-126 | 74 | 1700 | 540 | 9 | 3.03 |
| DC0.5/90–126 | 90 | 1600 | 500 | 6 | 2.98 |
| DC0.375/90-126 | 90 | 1750 | 375 | 5 | 2.04 |
| DC0.54/90-126 | 90 | 1700 | 540 | 7 | 3.03 |
| DC0.375/110-126 | 110 | 3200 | 375 | 10 | 1.11 |
| DC0.375B/110-126 | 110 | 1750 | 375 | 4 | 2.04 |
| DC0.54/110-126 | 110 | 1700 | 540 | 6 | 3.03 |
| DC0.375C/110-126 | 110 | 1500 | 375 | 4 | 2.38 |
| DC0.54/150-126 | 150 | 3200 | 540 | 4 | 1.61 |
| DC0.54/180-126 | 180 | 2200 | 540 | 4 | 2.34 |
| DC0.54B/180-126 | 180 | 2000 | 540 | 4 | 2.57 |
| DC0.375/180-126 | 180 | 1700 | 375 | 2.8 | 2.1 |
| DC0.54C/180-126 | 180 | 1500 | 540 | 4 | 3.43 |
| DC0.375B/180-126 | 180 | 1500 | 375 | 2.8 | 2.38 |
| DC0.375/250-126 | 250 | 1500 | 375 | 2 | 2.38 |
| DC0.54/300-126 | 300 | 1200 | 540 | 2 | 4.29 |
Advantages of Brushed DC motors
- Simple structure
- Easy maintenance
- Relatively simple manufacturing process
- Low cost.
- Simple control, suitable for applications where high precision is not required.
- High starting torque, suitable for equipment that requires instant starting and large loads, such as power tools and small lifting equipment.
- Wide range of applications, suitable for low-voltage and low-power applications.
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Brushed or Brushless Customer preference
- Output power (W) Horsepower/watts/torque rated at full load speed
- Voltage (V) i.e 12v DC …….. 220v AC
- Motor speed (RPM) Revolutions per minute of the shaft at full load Voltage
- Application e.g. traction, airconditioning, etc.
- Duty Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function e.g. forward/reverse, variable speed, acceleration profile, etc.
