Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.54/74-126 | Type: | Brushed DC motor |
| Output Power: | 540W | DC Voltage: | 90V | Speed Range: | 1000-3300 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | Fan: | Optional |
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description
At the core of a brushed motor lies a straightforward design consisting of two main components: the stator and the rotor.A typical Brushed DC Motor contains six components: Stator, Rotor/Armature, Commutator, and Brushes, an axle, and magnets.
The Brushed DC Motor has a relatively inexpensive start up cost and simple design. In some cases, the Brushed DC Motor can cost half the price of the Brushless DC Motor counterparts. However, the brushes within the Brushed DC Motor are apt to wear and require replacement, making it a higher-maintenance option, because of the long run costs.
DC0.54/74-126 which parameters are 1700rpm 540W 74V Brushed DC Motor the motor size is Dia 126, the Flange and shaft can be defined by the application, that can help to install directly.
All DC126 motors, up to 375w, are rated “Continuous Duty” and are TENV. 375W-540w are rated “Intermittent Duty” and is recommended that they operateonly for a short period of time to avoid overheating. If “Continuous Duty” is required, a cooling fan can be added to the motor.
These motors are Totally Enclosed Fan Cooled (TEFC) – same as TENV excepthas external fan as an integral part of the motor, to provide cooling by blowing air around the outside frame of the motor.
Insulation Class “F” = 155°C
Detailed Images

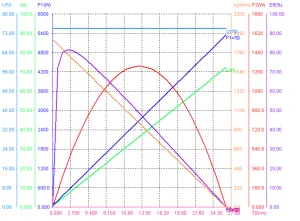

Performance of 540W 74V 1700rpm Brushed DC Motor
Brushed motor list
| Sort | Voltage | Speed | Output | Load | Torque |
| (V) | (RPM) | (W) | (A) | (Nm) | |
| DC0.37/12-126 | 12 | 1700 | 370 | 35 | 2.07 |
| DC0.54/12-126 | 12 | 1500 | 540 | 55 | 3.3 |
| DC0.375/12-126 | 12 | 1200 | 375 | 39 | 2.98 |
| DC0.75/24-126 | 24 | 3500 | 750 | 38 | 2.04 |
| DC0.54/24-126 | 24 | 2500 | 540 | 29 | 1.98 |
| DC0.54B/24-126 | 24 | 2000 | 540 | 29 | 2.8 |
| DC0.37/24-126 | 24 | 1700 | 370 | 19 | 2.07 |
| DC0.54C/24-126 | 24 | 1500 | 540 | 31 | 3.43 |
| DC0.4/24-126 | 24 | 1200 | 400 | 21 | 3.18 |
| DC0.37/27-126 | 27 | 1500 | 370 | 16 | 2.35 |
| DC0.37/29-126 | 29 | 1100 | 370 | 15 | 3.21 |
| DC0.375/42-126 | 42 | 1400 | 375 | 11 | 2.55 |
| DC0.54/48-126 | 48 | 2000 | 540 | 14 | 2.8 |
| DC0.54B/48-126 | 48 | 1700 | 540 | 13 | 3.03 |
| DC0.375/48-126 | 48 | 1500 | 375 | 9 | 2.38 |
| DC0.54/60-126 | 60 | 1800 | 540 | 11 | 2.86 |
| DC0.54B/60-126 | 60 | 1500 | 540 | 9 | 3.43 |
| DC0.54/74-126 | 74 | 1700 | 540 | 9 | 3.03 |
| DC0.5/90–126 | 90 | 1600 | 500 | 6 | 2.98 |
| DC0.375/90-126 | 90 | 1750 | 375 | 5 | 2.04 |
| DC0.54/90-126 | 90 | 1700 | 540 | 7 | 3.03 |
| DC0.375/110-126 | 110 | 3200 | 375 | 10 | 1.11 |
| DC0.375B/110-126 | 110 | 1750 | 375 | 4 | 2.04 |
| DC0.54/110-126 | 110 | 1700 | 540 | 6 | 3.03 |
| DC0.375C/110-126 | 110 | 1500 | 375 | 4 | 2.38 |
| DC0.54/150-126 | 150 | 3200 | 540 | 4 | 1.61 |
| DC0.54/180-126 | 180 | 2200 | 540 | 4 | 2.34 |
| DC0.54B/180-126 | 180 | 2000 | 540 | 4 | 2.57 |
| DC0.375/180-126 | 180 | 1700 | 375 | 2.8 | 2.1 |
| DC0.54C/180-126 | 180 | 1500 | 540 | 4 | 3.43 |
| DC0.375B/180-126 | 180 | 1500 | 375 | 2.8 | 2.38 |
| DC0.375/250-126 | 250 | 1500 | 375 | 2 | 2.38 |
| DC0.54/300-126 | 300 | 1200 | 540 | 2 | 4.29 |
Advantages of Brushed DC motors
- Simple structure
- Easy maintenance
- Relatively simple manufacturing process
- Low cost.
- Simple control, suitable for applications where high precision is not required.
- High starting torque, suitable for equipment that requires instant starting and large loads, such as power tools and small lifting equipment.
- Wide range of applications, suitable for low-voltage and low-power applications.
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Brushed or Brushless Customer preference
- Output power (W) Horsepower/watts/torque rated at full load speed
- Voltage (V) i.e 12v DC …….. 220v AC
- Motor speed (RPM) Revolutions per minute of the shaft at full load Voltage
- Application e.g. traction, airconditioning, etc.
- Duty Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function e.g. forward/reverse, variable speed, acceleration profile, etc.
