Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL450A48 | Type: | Brushless DC Motor |
| Output Power: | 6HP(4.5kw) | DC Voltage: | 48v | Speed Range: | 1500 RPM |
| Controller: | Customized, Optional | Construction: | Permanent magnet | Insulation Class: | Class F |
| Commutation: | Brushless | Encoder: | hall sensor | Protect Feature: | Waterproof |
| Enclosure: | IP54 | Poles: | 2P | Wire: | 100% copper |
| Housing: | Aluminum Frame | Efficiency: | IE3 | Certification | CE, ROHS, UL |
| Duty: | S1 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Industrial machinery, Rickshaw, Boat(propeller), Car, Traction Motor, Pump, Other | ||||
Product Description
48v 4.5kw 1500rpm BLDC motor is designed with hall sensor, with IEC standard aluminum frame, available with OEM and ODM. The protection feature of waterproof makes it suit to use for boat propeller. At the same time, the groove design facilitates the heat generated during the running. In addition, it’s beneficial to decrease the operation temperature by water cooling or other cooling ways.
Except our normal motor parts, we also can according to customers requirement to make. Like the encoder, the size of shaft, add brake and so on.

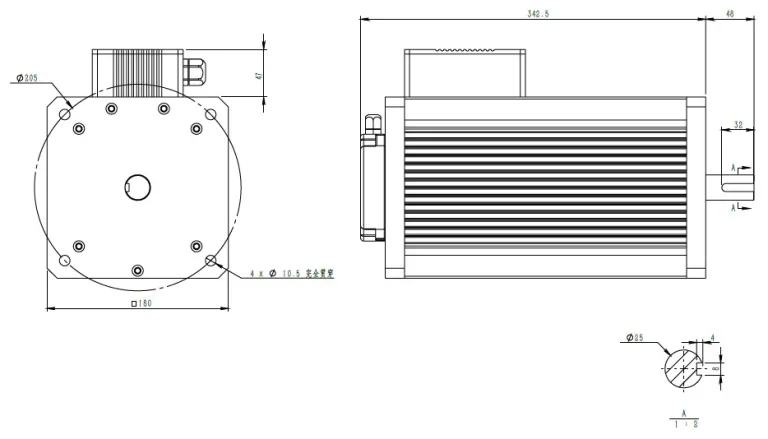

Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL300C48 | 3.0 | 48 | 67.6 | 2650 | 10.81 | 4 | 92.5 | 61 |
| VOL-BL300B72 | 3.0 | 72 | 46.8 | 3000 | 9.55 | 4 | 89 | 61 |
| VOL-BL350C60 | 3.5 | 60 | 69.5 | 1680 | 19.9 | 4 | 84 | 61 |
| VOL-BL370C60 | 3.7 | 60 | 73.41 | 3600 | 9.82 | 4 | 84 | 61 |
| VOL-BL400C48 | 4.0 | 48 | 90.6 | 2580 | 14.81 | 4 | 92 | 62 |
| VOL-BL450A72 | 4.5 | 72 | 67.93 | 1500 | 28.65 | 4 | 92 | 62 |
| VOL-BL450B220 | 4.5 | 220 | 12.84 | 3000 | 14.33 | 4 | 92 | 62 |
| VOL-BL500C72 | 5.0 | 72 | 75.48 | 3600 | 13.26 | 4 | 92 | 62 |
| VOL-BL550C72 | 5.5 | 72 | 85.6 | 3680 | 14.27 | 4 | 89.2 | 63 |
Advantages of Brushless DC motors
- Lower Maintainance and longer lifetime – no brush and commutator erosion
- Lower noise – the elimination of brush contact
- Higher power to weight ratio
- Higher efficiency ( in general higher than 90%)
- Flexible design. The range of voltage, speed range, torque, power, work time, etc can be customized.
- Light weight
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 220V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
