Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL10B48 | Type: | Brushless DC Motor |
| Output Power: | 1KW | DC Voltage: | 48V | Speed Range: | 3000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F |
| Enclosure: | IP54 | Poles: | 6P | Wire: | 100% copper coil |
| Current: | 24.5A | Sensor: | Hall sensor | Certification: | CE,UL,ROHS |
| Housing: | Aluminum frame | Efficiency: | up to 85% | ||
| Duty: | S1,S2,S3 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / Custom |
| Application: | Boat, Car, Sightseeing cars, Home Appliance, Oil Pump, Vehicle, HVAC | ||||
Product Description
The brushless DC motor adopts an electronic commutation system, integrated with Hall sensors and DSP controllers, which can achieve microsecond commutation response, eliminate mechanical commutation dead zone, and have an operating noise of less than 60dB.
Multi-mode compatibility, supports multiple control interfaces such as PWM, analog, CAN bus, etc., suitable for boats, sightseeing cars, home appliances, oil pumps, vehicles, HVAC and other applications
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team at info@volcanomotor.com.
Motor construction
| Motor type | VOL-BL10B48 |
| Output power | 1KW |
| Output speed | 3000RPM |
| Output torque | 3.18N.m |
| Frequency | 50Hz |
| Current | 24.5A |
| Voltage | 48V |
| Insulation class | Class F |

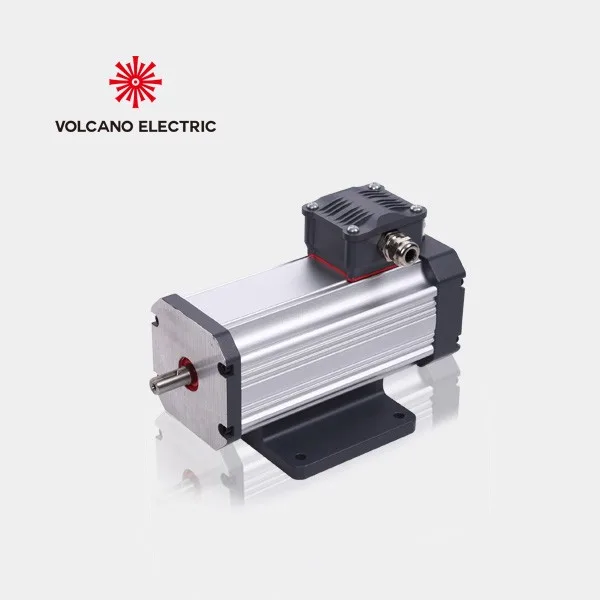

Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL03B12 | 0.375 | 12 | 36.76 | 3000 | 1.19 | 2 | 85 | 62 |
| VOL-BL06C12 | 0.6 | 12 | 58.82 | 1800 | 3.18 | 2 | 85 | 62 |
| VOL-BL07B24 | 0.75 | 24 | 36.76 | 3000 | 2.39 | 2 | 85 | 62 |
| VOL-BL09C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL10B48 | 1 | 48 | 24.5 | 3000 | 3.18 | 6 | 85 | 60 |
| VOL-BL12C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL13C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL15C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life and low failure rate
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Reduction of EMI
- Lower noise – the elimination of brush contact
- Higher power to weight ratio
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
