Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL150C48 | Type: | Brushless DC Motor |
| Output Power: | 1500W | DC Voltage: | 48V | Speed Range: | 1800 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F |
| Enclosure: | IP44/IP54/IP65 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Current: | 58.82A | Sensor: | Hall sensor, Optional | Certification: | CE,UL,ROHS |
| Housing: | Aluminum frame | Efficiency: | up to 90 | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC |
| Application: | Boat, Car, EV, Fan, Home Appliance, Traction Motor, Pump, bus A/C systems ,Other | ||||
Product Description

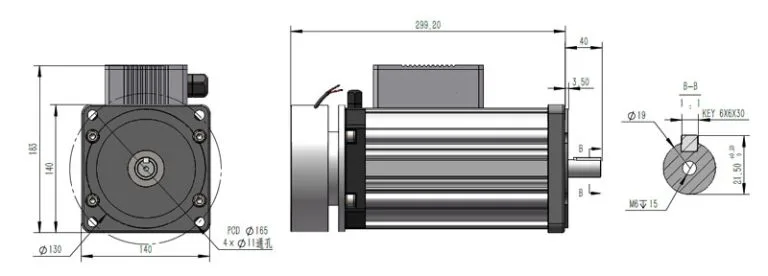

Volcano electric BLDC Motor 48V, 1500W, 1800RPM, IP54 duty continues, along with or without hall sensor, assembled a brake and can also offer the matched controller. The gross weight of the motor is 13kgs. Drawing of this motor is BLDC-123 80B5-240L. Mounting method of this motor is B5, “L” in the drawing stands for the motor frame we are using is under Long type of 123 series, we have different series for the motor frame and each of series divided into, short and long type, if the drawing we are using is short type then the drawing will end with “S”. Whether we use short or long motor frame based on the rated torque customers need.
There is a brake come along with this motor, application of this motor is electric lifting platform, so it requires motor to stop some time which will need motor equipped with a brake. This motor come out with a high efficiency which is above 90%.
If you have interesting for this motor, please feel free to contact us by info@volcanomotors.com
Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL020C24 | 0.2 | 24 | 10.7 | 1500 | 1.27 | 8 | 89 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C30 | 1 | 30 | 43 | 1200 | 7.96 | 8 | 88 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 64.5 | 2300 | 4.98 | 8 | 89 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C310 | 1.5 | 310 | 6.2 | 3500 | 4.09 | 8 | 89 | 61 |
| VOL-BL150C48 | 1.5 | 48 | 40.3 | 1800 | 7.96 | 8 | 90 | 61.5 |
| VOL-BL100C48 | 1 | 48 | 26.9 | 2500 | 3.82 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- Lower maintenance and longer lifetime- no brush and commutator erosion
- Lower electromagnetic noise -the elimination of brush contact
- Higher power to weight ratio
- Higher efficiency ( in general higher than 90%)
- Lower temperature rise-more efficient heat dissipation due to winding construction
- Simple structure
- Higher speed range- no limit of brushes and commutator
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
