Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL100C48 | Type: | Brushless DC Motor |
| Output Power: | 1000w | DC Voltage: | 48V | Speed Range: | 2500 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 8P | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | up to 85% | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | E bike, Boat, Car, EV, Fan, Home Appliance, Traction Motor, Pump, bus A/C systems ,Other | ||||
Product Description

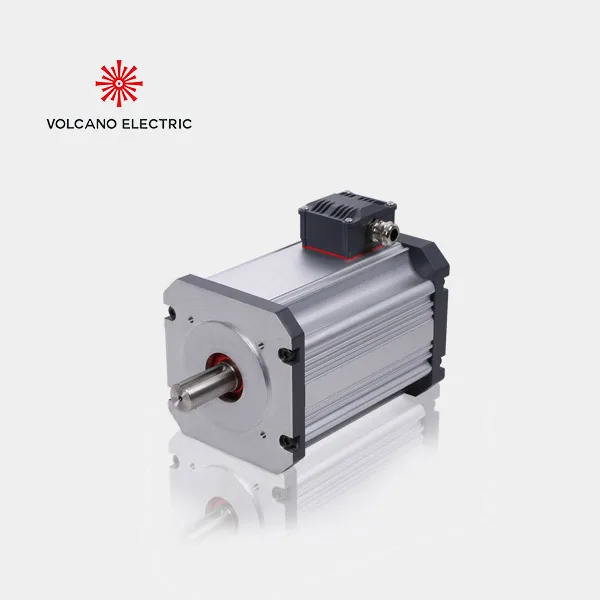

VOL-BL100C48, is a 1.3HP brushless DC motor operating at 48V and 2500RPM—embodying the future of efficient motion control. As a BLDC model, it eliminates brush wear, delivering 20-30% higher efficiency than brushed motors, along with quieter operation and longer service life.This Volcano BLDC motor can run clockwise and counter clockwise, with hall sensor. The weight is round 8.5kg. This motor with controllers is designed for E-bikes.With the global BLDC motor market projected to reach $40B by 2027, this model positions businesses at the forefront of energy-efficient technology adoption.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.

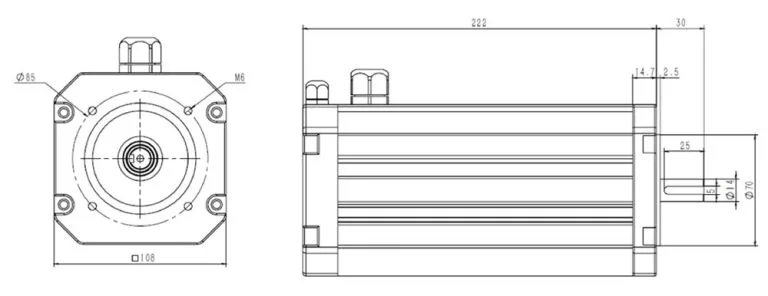

Configuration
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL040C76 | 0.4 | 76 | 6.8 | 2000 | 1.91 | 8 | 89 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C48 | 1 | 48 | 26.9 | 2500 | 3.82 | 8 | 85 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C310 | 1.5 | 310 | 6.2 | 3500 | 4.09 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL250C24 | 2.5 | 24 | 123 | 3350 | 7.13 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
