Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL130C36 | Type: | Brushless DC Motor |
| Output Power: | 1.3 KW | DC Voltage: | 36V | Speed Range: | 3200 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | up to 90% | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, EV, Fan, Home Appliance, Traction Motor, Pump, bus A/C systems ,Other | ||||
Product Description

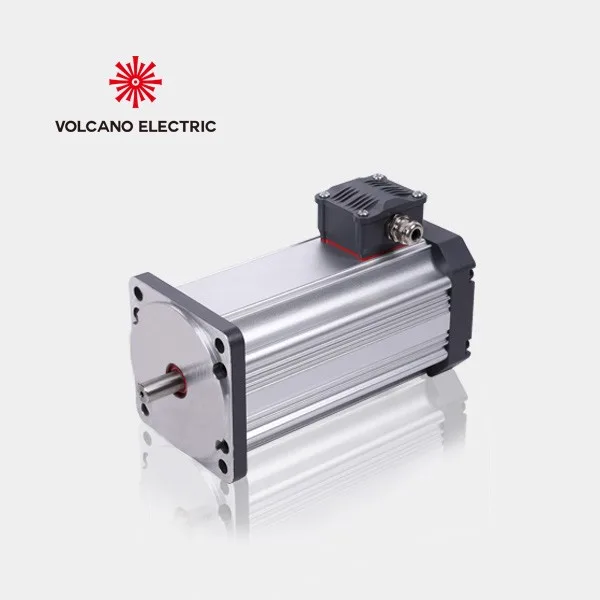

The 1300W 36VDC VOL-BL130C36 brushless dc motor has a higher 3200RPM and various numbers of speed poles (4P, 6P, 8P…). It will provide superior efficiency and no brush maintenance – the lack of brushes ensures long life and no burning smells. Its ruggedness robust design delivers consistent performance across a variety of applications including industrial drives and automation. With low maintenance and controllable speed, it’s a fine mix of power and endurance for challenging work.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.

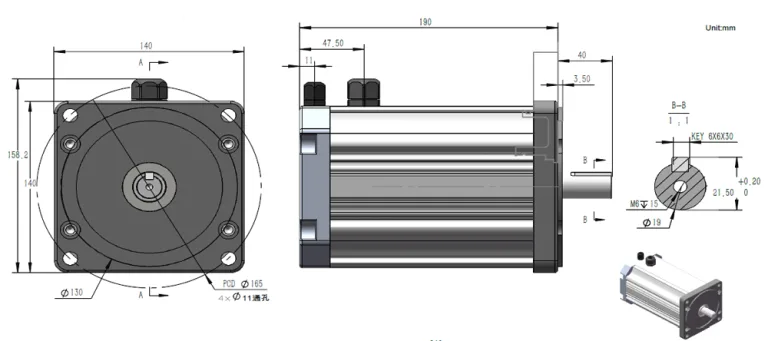

Configuration
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C48 | 1 | 48 | 24.5 | 2500 | 3.82 | 8 | 85 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C72 | 1.5 | 72 | 23.5 | 3200 | 4.48 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL250C24 | 2.5 | 24 | 123 | 3350 | 7.13 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
