Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.12-80 | Type: | Brushed DC motor |
| Output Power: | 120W | DC Voltage: | 36V | Speed Range: | 2000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description
Both Brushed and Brushless DC motors can be tailored to your requirements. This 120W brushed DC motor is built for 36V and 2000 rpm, representing one option within our 120W brushed DC motor range.

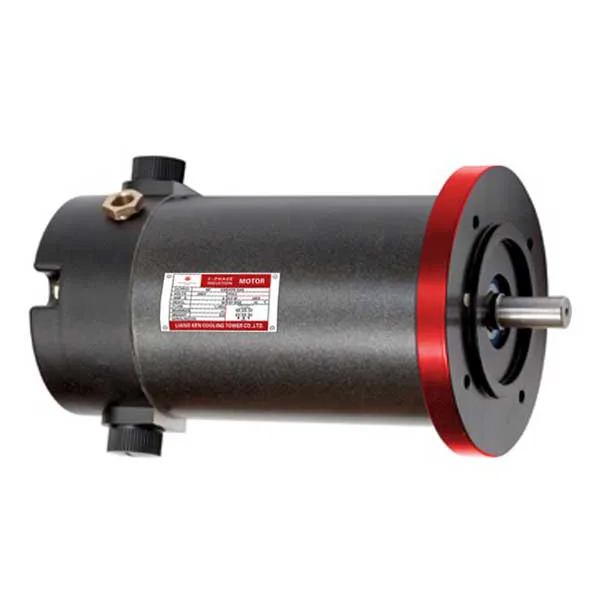

Detailed Images
Brushed motor list
| Model | Power Kw |
Voltage V |
Current A |
Speed Rpm |
Nominal torque N.m |
| DC0.1-80 | 0.1 | 12 | 10 | 1750 | 0.54 |
| DC0.1-80 | 0.1 | 24 | 5 | 2400 | 0.39 |
| DC0.1-80 | 0.1 | 36 | 3 | 1900 | 0.5 |
| DC0.1-80 | 0.1 | 48 | 2 | 2200 | 0.43 |
| DC0.1-80 | 0.1 | 180 | 1 | 2500 | 0.38 |
| DC0.1-80 | 0.1 | 180 | 1 | 2000 | 0.47 |
| DC0.11-80 | 0.11 | 24 | 6 | 2500 | 0.4 |
| DC0.12-80 | 0.12 | 12 | 14 | 2000 | 0.57 |
| DC0.12-80 | 0.12 | 24 | 7 | 3000 | 0.38 |
| DC0.12-80 | 0.12 | 36 | 4 | 2000 | 0.57 |
| DC0.12-80 | 0.12 | 48 | 2 | 2200 | 0.43 |
Advantages of Brushed DC motors
- Efficient performance
- Compact and powerful
- Convenient brush access
- Sleek appearance
- Custom designs available
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Motor type – Brushed or Brushless
- Output power – horsepower, watts, or torque at full‑load speed
- Voltage – for example, 12 V DC to 220 V AC
- Speed (RPM) – shaft speed at full load voltage
- Application – such as traction, cooling, or other uses
- Duty cycle – most motors are rated for continuous duty; some applications may require intermittent duty
- Configuration/Frame – IEC standard; flange and shaft can be manufactured to your drawings
- Controller functions – forward/reverse, variable speed, acceleration profile, etc.
