Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL150C310 | Type: | Brushless DC Motor |
| Output Power: | 1500w | DC Voltage: | 310V | Speed Range: | 3500 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F/H |
| Enclosure: | IP44 / IP54/IP65 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | up to 85% | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard |
| Application: | Boat, Car, EV, Fan, Home Appliance, Traction Motor, Pump, bus A/C systems ,Other | ||||
Product Description
Volcano makes various BLDC motor, mainly power covered from 12VDC to 380VAC, among all different voltages, 48V BLDC motor is volcano’s featured product. Power range from 100W to 5000W, Speed range from 1000RPM to 5000RPM. It covers different applications, like lifting equipments, pump, fan and electric car industry etc.
This Volcano BLDC motor, with specification of 310VDC, 1500W, 3500RPM, duty S1 continues, IP54(IP65 is also optional), efficiency goes up as 88%, offer 4.09 Nm torque value, rated current is about 5.5A, application for compressor industry. This motor designed with 8 poles magnets per rotor. This BLDC motor comes without hall sensor as our clients requirement. One thing to be sure, we can provide the hall sensor or different kinds of encoders and suggest a suitable controller for this motor for sure.
If you have interesting for this motor, please feel free to contact us by info@volcanomotors.com

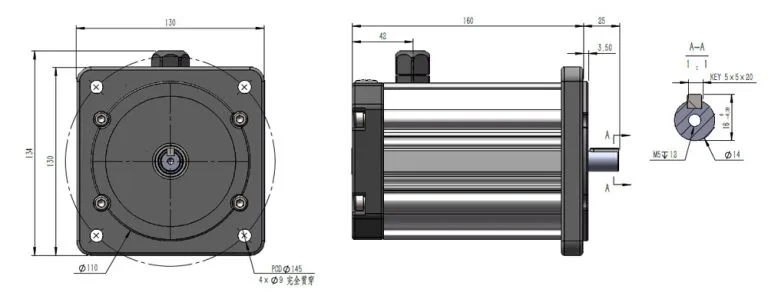

Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL075B220 | 0.75 | 220 | 4.4 | 3000 | 2.39 | 8 | 92 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C48 | 1 | 48 | 24.5 | 2500 | 3.82 | 8 | 85 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C310 | 1.5 | 310 | 6.2 | 3500 | 4.09 | 8 | 85 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL250C24 | 2.5 | 24 | 123 | 3350 | 7.13 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- Lower maintenance and longer lifetime- no brush and commutator erosion
- Lower electromagnetic noise -the elimination of brush contact
- Higher power to weight ratio
- Higher efficiency ( in general higher than 90%)
- Lower temperature rise-more efficient heat dissipation due to winding construction
- Reduction of EMI
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
