Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL400C72 | Type: | Brushless DC Motor |
| Output Power: | 4000W | DC Voltage: | 72V | Speed Range: | 2580 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44/IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Current: | 58.82A | Sensor: | Hall sensor, Optional | Certification: | CE,UL,ROHS |
| Housing: | Aluminum frame | Efficiency: | up to 84 | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC/NEMA |
| Application: | Boat, Car, EV, Fan, Home Appliance, Traction Motor, Pump, bus A/C systems ,Other | ||||
Product Description

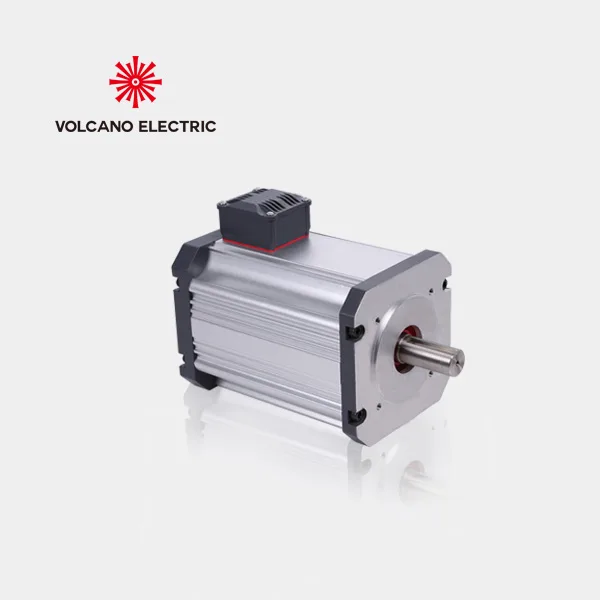

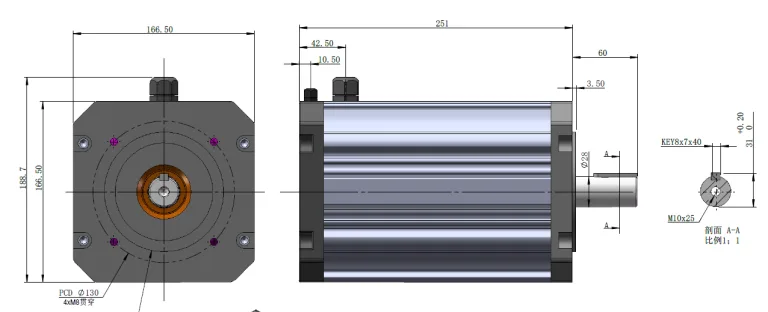

Volcano electric BLDC Motor 72V, 4000W, 2580RPM 14.81Nm, IP54 duty, performs with hall sensor controller. Gross weight 23kgs, 84% efficiency, this motor is also applied in EV Market for a tricycle. This motor is quite similar with Volcano motor model VOL-BL400C48, only for the different of voltage. Drawing is also same under M154 100B14 251S.
Motor in EV market are divided in many different applications. Such as large bus, small cars, small 2 wheel e bikes, 3 wheel bikes, racing cars, motorcycle, small aircraft etc, among above applications, small cars small bus and 2 wheel e bikes take large percentage, in total for more than 50% in all market.
If you have interesting for this motor, please feel free to contact us by info@volcanomotors.com
Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL020C24 | 0.2 | 24 | 10.7 | 1500 | 1.27 | 8 | 89 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C30 | 1 | 30 | 43 | 1200 | 7.96 | 8 | 88 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 64.5 | 2300 | 4.98 | 8 | 89 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL550C72 | 5.5 | 72 | 98.5 | 3680 | 14.27 | 8 | 90 | 60 |
| VOL-BL400C72 | 4 | 72 | 71.17 | 2580 | 14.81 | 8 | 85 | 61 |
| VOL-BL400C48 | 4 | 48 | 107 | 2580 | 14.81 | 8 | 89 | 61 |
| VOL-BL150C48 | 1.5 | 48 | 40.3 | 1800 | 7.96 | 8 | 90 | 61.5 |
| VOL-BL100C48 | 1 | 48 | 26.9 | 2500 | 3.82 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- Lower Maintainance and longer lifetime – no brush and commutator erosion
- Lower noise – the elimination of brush contact
- Higher power to weight ratio
- Higher efficiency ( in general higher than 90%)
- Flexible design. The range of voltage, speed range, torque, power, work time, etc can be customized.
- Light weight
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 220V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
