Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.25/24-100 | Type: | Brushed DC motor |
| Output Power: | 250W | DC Voltage: | 24V | Speed Range: | 2700 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | Fan: | Optional |
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description

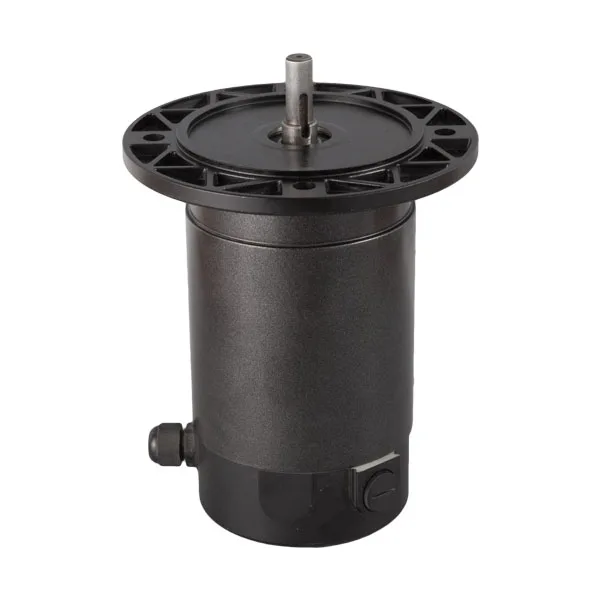

The DC0.25/24-100 brushed motor features specifications of 24V, 250W, and 2700rpm. Suitable for battery or low-voltage DC power systems, it utilizes mechanical commutation for fast response, making it suitable for mobile devices requiring rapid start-stop operations. Therefore, this motor provides sufficient cutting power for small power tools such as angle grinders and handheld cutters, while its high speed ensures efficient cutting. It is also suitable for small agricultural machinery such as portable sprayers and small harvesters. Its vibration resistance and ease of maintenance ensure efficient operation in complex field environments.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.
Detailed Images
Brushed motor list
| Sort | Voltage | Speed | Output | Load | Torque |
| (V) | (RPM) | (W) | (A) | (Nm) | |
| DC0.2/24-100 | 24 | 1500 | 200 | 12 | 1.27 |
| DC0.15/24-100 | 24 | 1400 | 150 | 7 | 1.02 |
| DC0.25/36-100 | 36 | 1500 | 250 | 8 | 1.59 |
| DC0.25/24-100 | 24 | 615 | 250 | 17 | 3.88 |
| DC0.25/48-100 | 48 | 1500 | 250 | 6 | 1.59 |
| DC0.18/48-100 | 48 | 1500 | 180 | 4 | 1.14 |
| DC0.2/12-100 | 12 | 2000 | 200 | 21 | 0.59 |
| DC0.25/12-100 | 12 | 1500 | 250 | 24 | 1.59 |
| DC0.2/12-100 | 12 | 1300 | 200 | 20 | 1.59 |
| DC0.25/24-100 | 24 | 2700 | 250 | 14 | 0.88 |
| DC0.25B/24-100 | 24 | 2300 | 250 | 12 | 1.03 |
| DC0.2/24-100 | 24 | 2000 | 200 | 10 | 0.95 |
| DC0.25C/24-100 | 24 | 1700 | 250 | 13 | 1.4 |
| DC0.25D/24-100 | 24 | 1200 | 250 | 13 | 1.98 |
| DC0.25E/24-100 | 24 | 1000 | 250 | 12 | 2.38 |
| DC0.18/90-100 | 90 | 1500 | 180 | 2.5 | 1.14 |
| DC0.18/110-100 | 110 | 1500 | 180 | 2 | 1.14 |
| DC0.18/120-100 | 120 | 1500 | 180 | 1.8 | 1.14 |
| DC0.20/180-100 | 180 | 1700 | 200 | 1.5 | 1.12 |
| DC0.20B/180-100 | 180 | 1500 | 200 | 1.5 | 1.36 |
Advantages of Brushed DC motors
- Simple structure
- Easy maintenance
- Relatively simple manufacturing process
- Low cost.
- Simple control, suitable for applications where high precision is not required.
- High starting torque, suitable for equipment that requires instant starting and large loads, such as power tools and small lifting equipment.
- Wide range of applications, suitable for low-voltage and low-power applications.
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Brushed or Brushless Customer preference
- Output power (W) Horsepower/watts/torque rated at full load speed
- Voltage (V) i.e 12v DC …….. 220v AC
- Motor speed (RPM) Revolutions per minute of the shaft at full load Voltage
- Application e.g. traction, airconditioning, etc.
- Duty Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function e.g. forward/reverse, variable speed, acceleration profile, etc.
