Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.2/24-100 | Type: | Brushed DC motor |
| Output Power: | 200W | DC Voltage: | 24V | Speed Range: | 1500 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | Fan: | Optional |
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description
The DC0. 2/24-100 is a DC brushed motor, output power is 200W, the rated voltage is 24VDC.It has a good starting performance and can be accurately controlled at an adjustable speed. Application-wise, this motor is suitable for use on any scenes with all characteristics of brushed motor. It can be applied to small/medium-sized electric tools (such as household drill, grinder), which need a certain amount of power and frequent start mechanism: its instant power supply and easy speed controlled performance will meet the needs of small/medium-sized tools. It is also applicable to auxiliary equipment of daily life and small processing factory or driving components in household appliance. Furthermore, it is of dust-proof and splash-proof construction with an enclosure protection grade of IP44/IP54, so it can be used in general indoor and light outdoor working conditions (though keeping away from severe environments with excessively high dust levels of humidity to prevent accelerated brush wear).
In summary, the DC0. 2/24-100 brushed DC motor, with 220W power, 24V voltage, 1500rpm stable no-load speed and practical protection performance, is a motor that fully utilizes the characteristics of brushed motors (simple structure, low cost, convenient speed), and meets the needs of various low-middle-end application.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.
Detailed Images

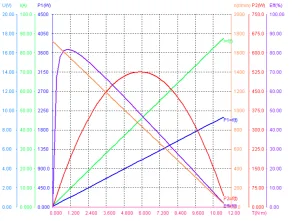

Performance of 24V 1500rpm 200W brushed DC Motor
Brushed motor list
| Sort | Voltage | Speed | Output | Load | Torque |
| (V) | (RPM) | (W) | (A) | (Nm) | |
| DC0.2/24-100 | 24 | 1500 | 200 | 12 | 1.27 |
| DC0.15/24-100 | 24 | 1400 | 150 | 7 | 1.02 |
| DC0.25/36-100 | 36 | 1500 | 250 | 8 | 1.59 |
| DC0.25/24-100 | 24 | 615 | 250 | 17 | 3.88 |
| DC0.25/48-100 | 48 | 1500 | 250 | 6 | 1.59 |
| DC0.18/48-100 | 48 | 1500 | 180 | 4 | 1.14 |
| DC0.2/12-100 | 12 | 2000 | 200 | 21 | 0.59 |
| DC0.25/12-100 | 12 | 1500 | 250 | 24 | 1.59 |
| DC0.2/12-100 | 12 | 1300 | 200 | 20 | 1.59 |
| DC0.25/24-100 | 24 | 2700 | 250 | 14 | 0.88 |
| DC0.25B/24-100 | 24 | 2300 | 250 | 12 | 1.03 |
| DC0.2/24-100 | 24 | 2000 | 200 | 10 | 0.95 |
| DC0.25C/24-100 | 24 | 1700 | 250 | 13 | 1.4 |
| DC0.25D/24-100 | 24 | 1200 | 250 | 13 | 1.98 |
| DC0.25E/24-100 | 24 | 1000 | 250 | 12 | 2.38 |
| DC0.18/90-100 | 90 | 1500 | 180 | 2.5 | 1.14 |
| DC0.18/110-100 | 110 | 1500 | 180 | 2 | 1.14 |
| DC0.18/120-100 | 120 | 1500 | 180 | 1.8 | 1.14 |
| DC0.20/180-100 | 180 | 1700 | 200 | 1.5 | 1.12 |
| DC0.20B/180-100 | 180 | 1500 | 200 | 1.5 | 1.36 |
Advantages of Brushed DC motors
- Simple structure
- Easy maintenance
- Relatively simple manufacturing process
- Low cost.
- Simple control, suitable for applications where high precision is not required.
- High starting torque, suitable for equipment that requires instant starting and large loads, such as power tools and small lifting equipment.
- Wide range of applications, suitable for low-voltage and low-power applications.
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Brushed or Brushless Customer preference
- Output power (W) Horsepower/watts/torque rated at full load speed
- Voltage (V) i.e 12v DC …….. 220v AC
- Motor speed (RPM) Revolutions per minute of the shaft at full load Voltage
- Application e.g. traction, airconditioning, etc.
- Duty Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function e.g. forward/reverse, variable speed, acceleration profile, etc.
