Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL07B24 | Type: | Brushless DC Motor |
| Output Power: | 1HP(750W) | DC Voltage: | 24V | Speed Range: | 3000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F |
| Enclosure: | IP54 | Poles: | 2P | Wire: | 100% copper Coil |
| Current: | 36.76A | Sensor: | Hall sensor, Magnetic encoder | Certification: | CE,UL,ROHS |
| Housing: | Aluminum frame | Efficiency: | 85% | ||
| Duty: | S1, S2, S3 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / Customized |
| Application: | Boat, Car, Sightseeing cars, Home Appliance, Oil Pump, Vehicle, Drilling machine | ||||
Product Description
Introducing the VOL-BL07B24: a 24V DC brushless motor delivering 1HP (750W) at 3000RPM, perfect for vehicle applications. Its BLDC design ensures superior efficiency, minimal maintenance (no brush wear), and consistent performance—key for competitive events like Shell Eco-Marathon, ESVC, and Formula Sun Grand PRIX, where it’s a favorite among teams. Widely trusted in India’s vehicle market, this model excels in reliability. Beyond standard specs, we offer full customization to match your specific needs.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.

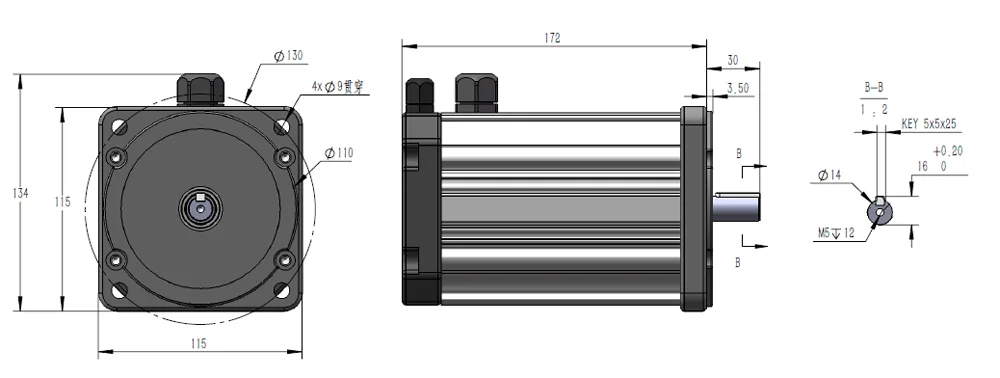

Configuration
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL03B12 | 0.375 | 12 | 36.76 | 3000 | 1.19 | 2 | 85 | 62 |
| VOL-BL06C12 | 0.6 | 12 | 58.82 | 1800 | 3.18 | 2 | 85 | 62 |
| VOL-BL07B24 | 0.75 | 24 | 36.76 | 3000 | 2.39 | 2 | 85 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C48 | 1 | 48 | 24.5 | 2500 | 3.82 | 8 | 85 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
