Product Specifications
| Brand Name: | Volcano Electric | Model Number: | BLDC0.7-100 | Type: | Brushless DC Motor |
| Output Power: | 1 HP (700W) | DC Voltage: | 24V | Speed Range: | 2400 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44/IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems ,Other | ||||
Product Description
Meet the BLDC0. 7-100 a Brushless DC motor is a 1HP powerhouse that runs on 24VDC, with a no load speed of 2400RPM. It is made according the BLDC design and reaches high efficiency, low maintenance (no brush erosion), and does not have noise disadvantage as brushed DC motor, especially during operation. Ideal for miniature industrial pumps, automated conveyor systems, and medical equipment such as fluid dispensers. It is very robust with well balanced gearing and ultra smooth poles can motor for exceptional smoothness.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.

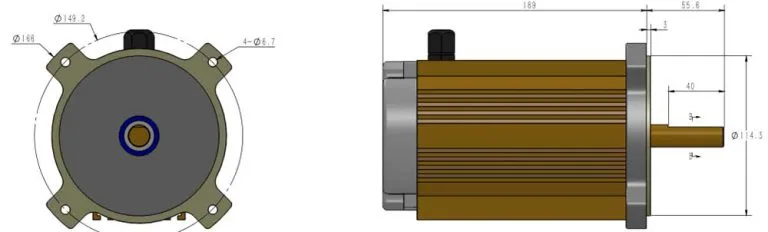

Configuration
Performance of 24V 2400RPM 1HP Brushless DC Motor
Brushless motor list
| Model | Power Kw |
Voltage V |
Current A |
Speed Rpm |
Nominal torque N.m |
Efficiency % |
Noise dB |
| BLDC0.3-150 | 0.3 | 24V | 14.7 | 1500 | 1.91 | 85 | 60 |
| BLDC0.3-150 | 0.375 | 24V | 18.4 | 2000 | 1.79 | 85 | 60 |
| BLDC0.9-100 | 0.9 | 48V | 22 | 2700 | 3.31 | 85 | 60 |
| BLDC0.85-100 | 0.85 | 60V | 16.7 | 1500 | 5.41 | 85 | 60 |
| BLDC0.75-100 | 0.75 | 74V | 11.9 | 1100 | 6.51 | 85 | 60 |
| BLDC0.75-100 | 0.75 | 24V | 36.7 | 2400 | 2.98 | 85 | 60 |
| BLDC1-100 | 1 | 72V | 16.3 | 1900 | 5.02 | 85 | 60 |
| BLDC1-100 | 1 | 48V | 24.5 | 2500 | 3.82 | 85 | 60 |
| BLDC1.05-100 | 1.05 | 36V | 34.3 | 2000 | 5.01 | 85 | 60 |
| BLDC1.13-101 | 1.13 | 36V | 36.9 | 1800 | 5.97 | 85 | 60 |
| BLDC1.2-100 | 1.2 | 36V | 39.2 | 2270 | 5.05 | 84 | 80 |
| BLDC1.3-100 | 1.3 | 48V | 31.8 | 3000 | 4.13 | 85 | 60 |
| BLDC1.4-100 | 1.4 | 60V | 27.5 | 2600 | 5.14 | 85 | 60 |
| BLDC1.5-100 | 1.5 | 24V | 73.5 | 2590 | 5.53 | 85 | 61 |
| BLDC2-100 | 2 | 24V | 98 | 3360 | 5.68 | 84.5 | 61.5 |
| BLDC2.5-100 | 2.5 | 24V | 122.5 | 3350 | 7.13 | 84.7 | 61.5 |
| BLDC3-100 | 3 | 48V | 73.5 | 2650 | 10.81 | 92.5 | 61 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
