Product Specifications
| Brand Name: | Volcano Electric | Model Number: | BLDC1.4-123 | Type: | Brushless DC Motor |
| Output Power: | 1400W | DC Voltage: | 24V | Speed Range: | 1560 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems ,Other | ||||
Product Description
This is an IPM brushless DC motor, engineered for speeds ranging from 1000rpm to 2500rpm. It offers power options between 300w and 3000w, with maximum rated torque from 3Nm to 13Nm. Featuring a 123mm outer diameter, its length varies according to different power outputs.
Typically, induction asynchronous motors have 2 poles (2500rpm at 50HZ or 3000rpm at 60HZ) or 4 poles (1200rpm at 50HZ or 1500rpm at 60HZ). DC motors, however, support various pole configurations (2P, 4P, 8P, etc.) and offer variable, stepless speed control—with higher efficiency than AC induction motors.
Our 1.4KW 24V 4-pole brushless DC motor is specifically designed for traction use in electric forklifts, vans, golf carts, cars, and similar vehicles.
Brushless DC motors can replace any brushed DC motor in existing applications. They’re found in PC cooling fans, DVD players, turntables, and even electric vehicles. For better efficiency, consider swapping your current brushed motor with a BLDC model.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.

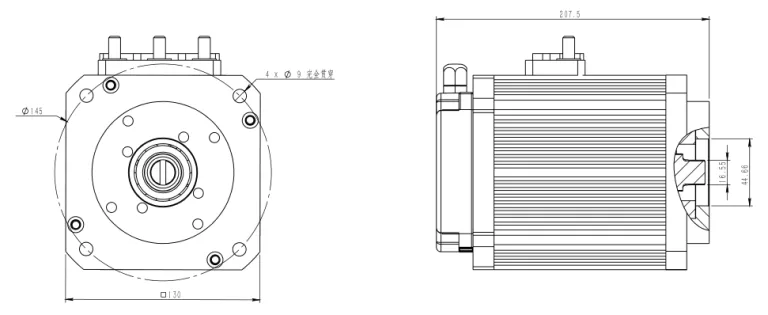

Detailed Images

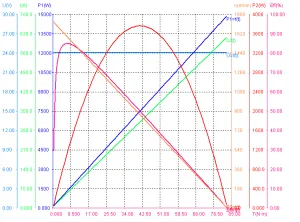

Performance of 1400W 24V 1560RPM BLDC Motors
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| BLDC0.65-123 | 0.65 | 24 | 32.2 | 1700 | 3.65 | 8 | 84 | 60 |
| BLDC1.2-123 | 1.2 | 24 | 59.5 | 1700 | 6.74 | 8 | 84 | 60 |
| BLDC1.25-123 | 1.25 | 24 | 62 | 1350 | 8.85 | 8 | 84 | 60 |
| BLDC1.4-123 | 1.4 | 24 | 69.45 | 1560 | 8.57 | 8 | 84 | 60 |
| BLDC1.8-123 | 1.8 | 48 | 44.2 | 2000 | 8.59 | 8 | 85 | 60 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
