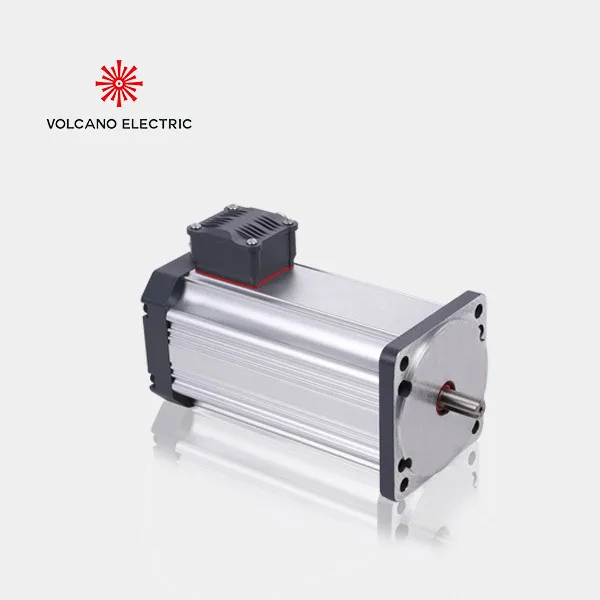

Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL120C24 | Type: | Brushless DC Motor |
| Output Power: | 1.2KW | DC Voltage: | 24V | Speed Range: | 2300 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44/IP54 | Poles: | 4P,6P,8P… | Wire: | 100% copper |
| Current: | 64.5A | Sensor: | Hall sensor,Optional | Certification: | CE,UL,ROHS |
| Housing: | Aluminum frame | Efficiency: | up to 89% | ||
| Duty: | S1 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / NEMA |
| Application: | Boat, Car, EV,Home Appliance, Pump, Traction Motor,bus A/C systems，Other | ||||
Product Description
The stator winding of the brushless DC motor is usually distributed, without the extra heat generated by the friction of the brushes. The overall temperature rise of the motor is low, and it can maintain good performance during long-term high-load operation, reducing failures caused by overheating. In addition, the motor has built-in over-temperature, over-current, and under-voltage protection, and supports remote fault warning. We provide a one-stop solution from the motor body to the driver, and can develop special voltages, installation methods, and communication protocols according to needs.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team at info@volcanomotor.com.
Motor construction
| Motor type | VOL-BL120C24 |
| Output power | 1.2KW |
| Output speed | 2300RPM |
| Output torque | 4.98N.m |
| Frequency | 50Hz |
| Current | 64.5A |
| Voltage | 24V |
| Insulation class | Class F |

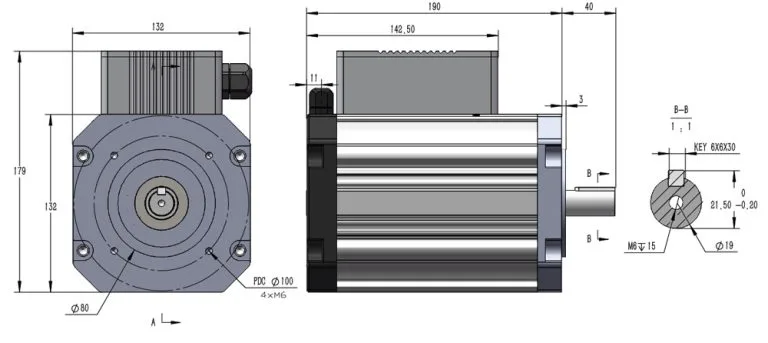

Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL020C24 | 0.2 | 24 | 10.7 | 1500 | 1.27 | 8 | 89 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C30 | 1 | 30 | 43 | 1200 | 7.96 | 8 | 88 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 64.5 | 2300 | 4.98 | 8 | 89 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C310 | 1.5 | 310 | 6.2 | 3500 | 4.09 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL360C24 | 3.6 | 24 | 193.5 | 3000 | 11.46 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- High speed and wide speed range- no brush and commutator erosion
- Long life and low failure rate
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Wide range of applications
- Reduction of EMI
- Lower noise – the elimination of brush contact
- Higher power to weight ratio
- Lower temperature rise – more efficient heat dissipation due to winding construction
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
