Product Specifications
| Brand Name: | Volcano Electric | Model Number: | BLDC1.2-123 | Type: | Brushless DC Motor |
| Output Power: | 1200W | DC Voltage: | 24V | Speed Range: | 1700 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems ,Other | ||||
Product Description
The 24V 1.2KW 1700RPM Sensorless BLDC Motors illustrate just how well brushless DC (BLDC) motors run sans position sensors. Being a form of BLDC motor, it inherits the basic network of benefits we know from BLDC — high efficiency and long lifetime — and it gorges itself with the sensorless concept to make a name for itself.
It’s not like sensored BLDC motors and the Hall Effect sensors that are used to measure position of rotor – in this sensorless BLDC motor, movement of rotor is measured through back EMF. This design decision is what allows it to be a viable type of BLDC motors: by removing the sensors, it simplifies the construction of a BLDC motor, and thus the points of failure that the sensors could add to a BLDC system.
For the end user, that means a BLDC motor that’s just as efficient as its sensored ones (maintaining the primary BLDC benefit of power savings) but also cheaper to buy—no additional sensor components necessary. It’s ideal for applications where the relevance of a BLDC motor has been decided mainly by reliability and simply, and that sensorless technology is an intelligent development of the BLDC motor family.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.
Detailed Images

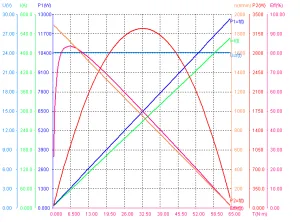

Performance of 1200W 24V 1700RPM BLDC Motors
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| BLDC0.65-123 | 0.65 | 24 | 32.2 | 1700 | 3.65 | 8 | 84 | 60 |
| BLDC1.2-123 | 1.2 | 24 | 59.5 | 1700 | 6.74 | 8 | 84 | 60 |
| BLDC1.25-123 | 1.25 | 24 | 62 | 1350 | 8.85 | 8 | 84 | 60 |
| BLDC1.4-123 | 1.4 | 24 | 69.45 | 1560 | 8.57 | 8 | 84 | 60 |
| BLDC1.8-123 | 1.8 | 48 | 44.2 | 2000 | 8.59 | 8 | 85 | 60 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
