Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.1-80 | Type: | Brushed DC motor |
| Output Power: | 100W | DC Voltage: | 24V | Speed Range: | 2400 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP65 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | ||
| Duty: | S1, S2, S3 … S10 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description
If your company needs a 24 Volt DC motor, Volcano Motors can help. We manufacture DC motors tailored for a wide range of applications. Each model is specially designed and built with high-quality materials, delivering better performance than many alternatives on the market.

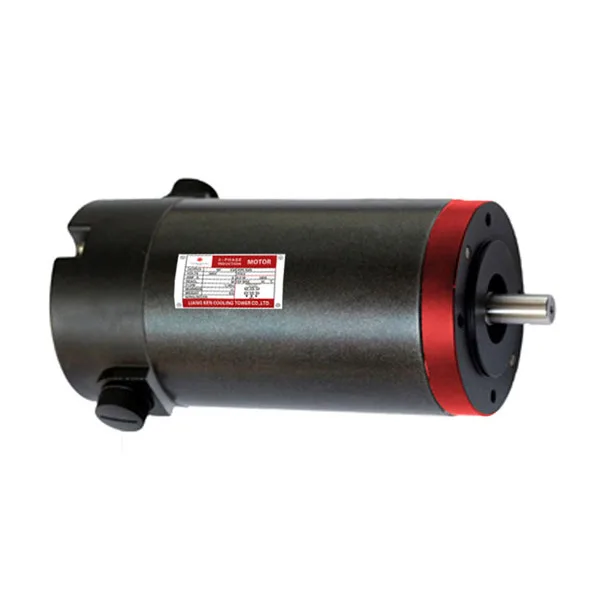

Detailed Images
Brushed motor list
| Model | Power Kw |
Voltage V |
Current A |
Speed Rpm |
Nominal torque N.m |
| DC0.1-80 | 0.1 | 12 | 10 | 1750 | 0.54 |
| DC0.1-80 | 0.1 | 24 | 5 | 2400 | 0.39 |
| DC0.1-80 | 0.1 | 36 | 3 | 1900 | 0.5 |
| DC0.1-80 | 0.1 | 48 | 2 | 2200 | 0.43 |
| DC0.1-80 | 0.1 | 180 | 1 | 2500 | 0.38 |
| DC0.1-80 | 0.1 | 180 | 1 | 2000 | 0.47 |
| DC0.11-80 | 0.11 | 24 | 6 | 2500 | 0.4 |
| DC0.12-80 | 0.12 | 12 | 14 | 2000 | 0.57 |
| DC0.12-80 | 0.12 | 24 | 7 | 3000 | 0.38 |
| DC0.12-80 | 0.12 | 36 | 4 | 2000 | 0.57 |
| DC0.12-80 | 0.12 | 48 | 2 | 2200 | 0.43 |
Advantages of Brushed DC motors
- Cost-Effective rotary motion control
- Fully reversible DC motors
- Suitable for pumps, fans, and drill applications
- Widely used in robotics and hobby projects
- Custom designs and additional motor options available
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Motor type – Brushed or brushless, based on your preference
- Output power – Horsepower, watts, or torque at full-load speed
- Voltage – For example, 12V DC to 220V AC
- Motor speed (RPM) – Shaft speed at full-load voltage
- Application – Such as traction, cooling, etc.
- Duty cycle – Most motors are rated for continuous duty; some applications may require intermittent duty motors
- Configuration/Frame – Built to IEC standards; flange and shaft can be customized according to your drawings
- Controller functions – Such as forward/reverse, variable speed, acceleration profile, etc.
