Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL075B220 | Type: | Brushless DC Motor |
| Output Power: | 750W | DC Voltage: | 220V | Speed Range: | 3000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F |
| Enclosure: | IP54 | Poles: | 8P | Wire: | 100% copper coil |
| Current: | 4.4 A | Sensor: | Hall sensor | Certification: | CE,UL,ROHS |
| Housing: | Aluminum frame | Efficiency: | up to 92% | ||
| Duty: | S1 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / Custom |
| Application: | Boat, Car, Sightseeing cars, Home Appliance, Oil Pump, Vehicle, Other | ||||
Product Description
The brushless DC motor (BLDC) eliminates wearing parts such as brushes and commutators, adopts a fully electronic commutation system, and uses sine wave drive technology. The energy conversion efficiency reaches 85%-95%, which is more than 30% energy-saving than traditional motors. It can be used in industrial fields such as CNC machine tools, smart storage AGVs, precision pumps and valves.
The input voltage of this product is 220Vac and the rated output power is 750W. The standard shaft diameter is 12mm, the outer frame size is 172mm in length and 115mm in width.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team at info@volcanomotor.com.

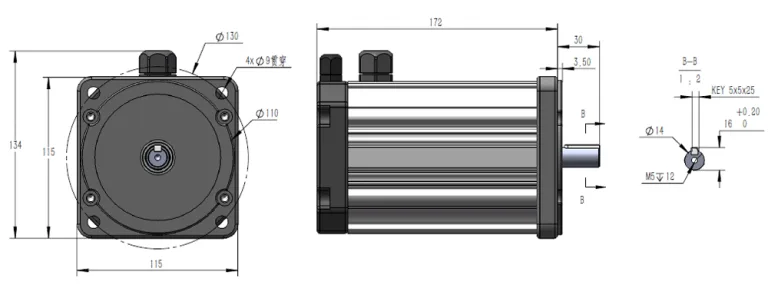

Motor construction
| Motor type | VOL-BL075B220 |
| Output power | 750W |
| Output speed | 3000RPM |
| Output torque | 2.39N.m |
| Max torque | 4.78N.m |
| Current | 4.4A |
| .Voltage | 220V |
| Insulation class | Class F |

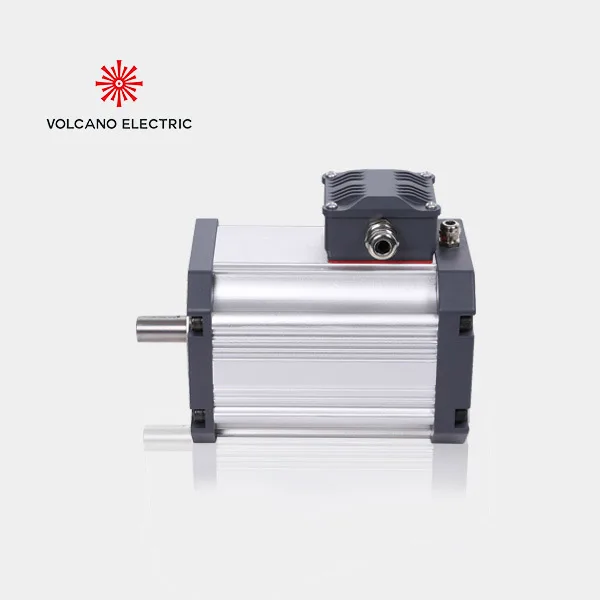

Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL075B220 | 0.75 | 220 | 4.4 | 3000 | 2.39 | 8 | 92 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C48 | 1 | 48 | 24.5 | 2500 | 3.82 | 8 | 85 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C72 | 1.5 | 72 | 23.5 | 3200 | 4.48 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL250C24 | 2.5 | 24 | 123 | 3350 | 7.13 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
