Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-D90W26P10R16 | Type: | Brushless DC Motor |
| Output Power: | 270W | DC Voltage: | 220Vac | Speed Range: | 1600 RPM |
| Controller: | Customized, Optional | Construction: | Permanent magnet | Insulation Class: | Class F |
| Commutation: | Brushless | Current: | 2.4A | Sensor: | none |
| Enclosure: | IP65 | Poles: | 10P | Wire: | 100% Copper Coil |
| Housing: | Iron frame | Efficiency: | 82% | Certification | 3C, CE, UL |
| Duty: | S1 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | BLDC motor |
| Application: | Air Cooler, Air Cooling Fan, Cooler | ||||
Product Description
BLDC Air Cooler Motor with NdFeb Permanent MagnetFeaturing NdFeb permanent magnet the BLDC air Cooler motor is an innovative air cooler motor technology that represents a quantum leap in air cooler motor design. Unlike conventional induction motors with ferrimagnetics, our D90 series BLDC motors are developed with smaller stator and rotor sizes with high performance windings processes. This device minimizes the requirement for such non-ferrements as copper, iron, aluminium and so on, and offers remarkable efficiency and steady operation. Our motors are not only more advanced but also more economical, more reliable, lower maintenance, and more energy efficient! The D90 series motors, featuring accurate speed control without gear play and low-noise operating characteristics, are suitable to be used with high-end AC Cooler products. Ideal for HVAC, refrigeration, automotive and other high performance electrical applications, our products represent the ideal blend of innovation, appearance, durability and performing, which leads us to provide high-quality products to our customers for a long-term relationship.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.

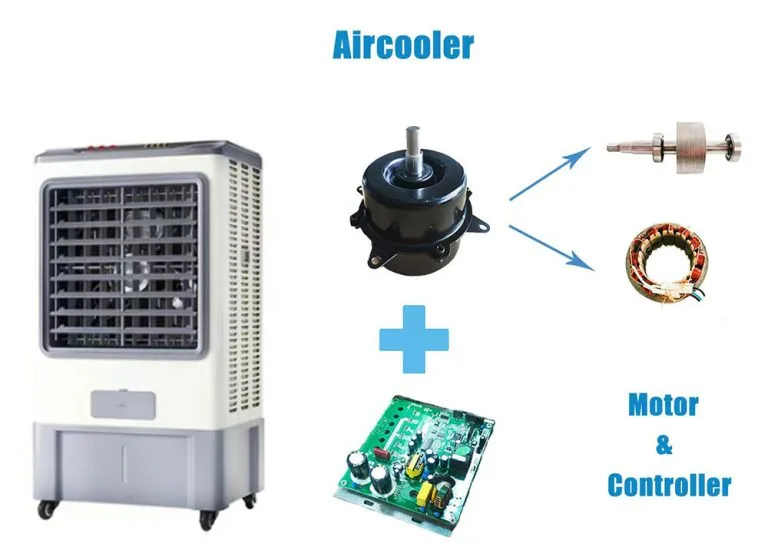

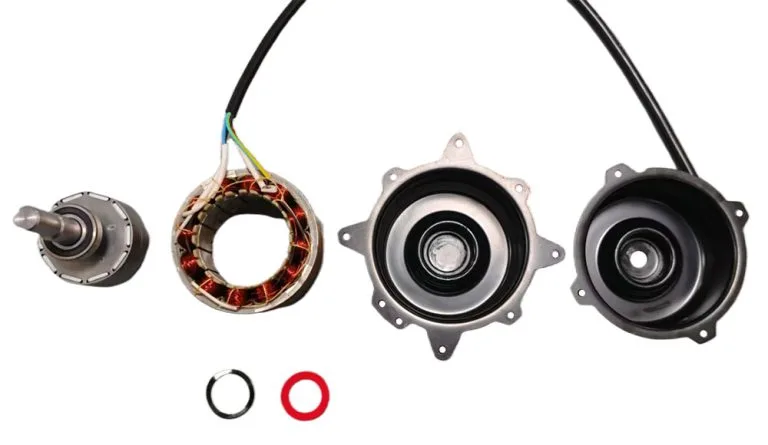

Application

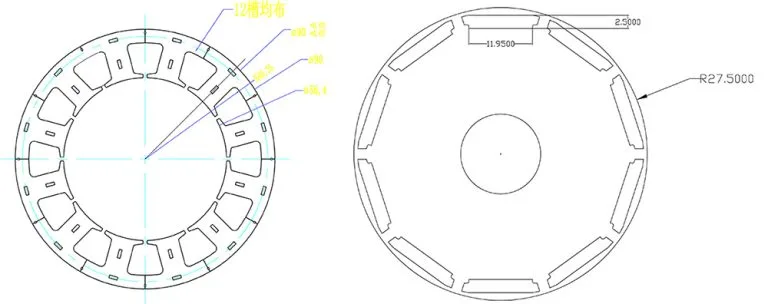

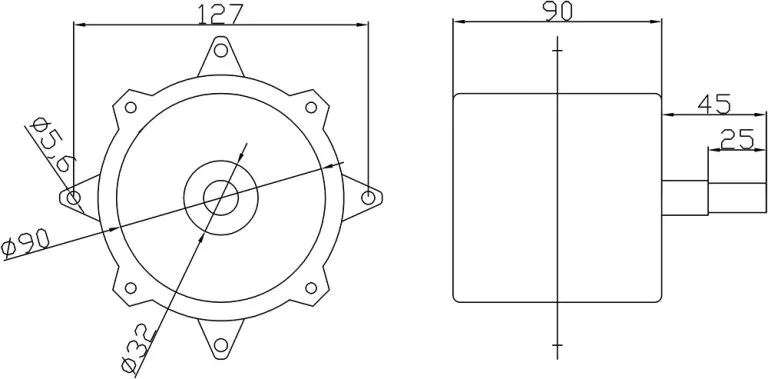

Configuration
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| W | V | A | RPM | N.m | % | dB | ||
| VOL-D90W20R14 | 120 | 210-230 | 1.8 | 1400 | 0.9 | 10 | 78 | 60 |
| VOL-D90W23R14 | 150 | 210-230 | 1.86 | 1400 | 1.2 | 10 | 78 | 60 |
| VOL-D90W26R14 | 230 | 210-230 | 2 | 1400 | 1.8 | 10 | 78 | 60 |
| VOL-D90W26R16 | 270 | 210-230 | 2.4 | 1600 | 2 | 10 | 82 | 60 |
| VOL-D90W30R16 | 320 | 210-230 | 2.8 | 1600 | 2.1 | 10 | 82 | 60 |
Advantages of Brushless DC motors
- Lower maintenance costs and longer life – no brush and commutator erosion
- Precise speed control
- Wide speed range- no limit of brushes and commutator
- Higher power-to-weight ratio
- Lower temperature rise-more efficient heat dissipation due to winding construction
- Simple structure
- Low noise- the elimination of brush contact
- High efficiency( in general higher than 80%)
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 220V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
