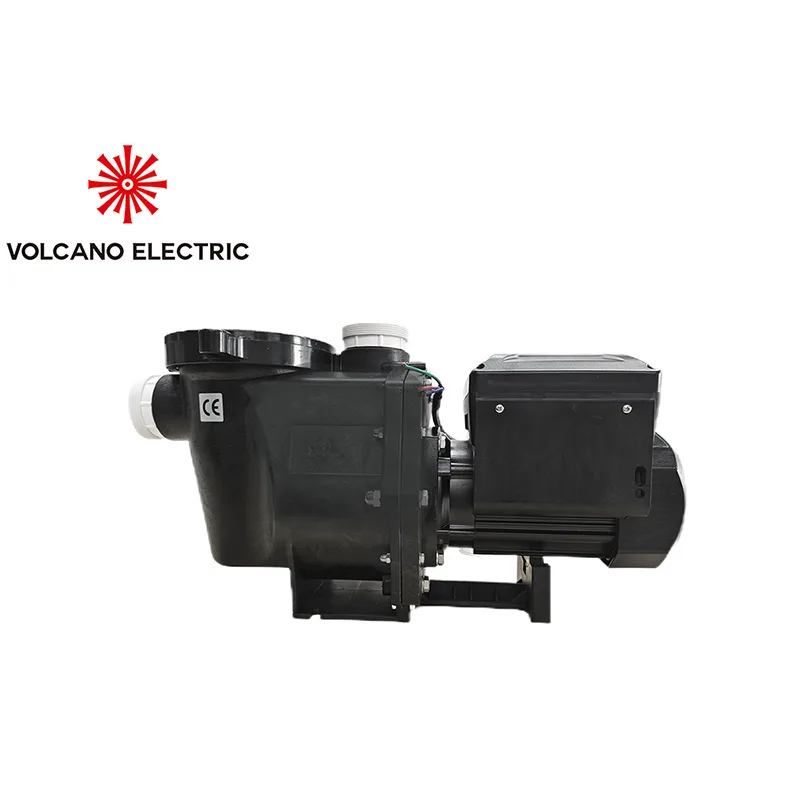

Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL150C22 | Type: | Brushless DC Motor |
| Output Power: | 1500W | DC Voltage: | 220Vac | Speed Range: | 2900 RPM |
| Controller: | Customized, Optional | Braker: | none | Insulation Class: | Class F |
| Enclosure: | IP65 | Poles: | 8P | Wire: | 100% Copper Coil |
| Housing: | Aluminum frame | Efficiency: | 90% | Current: | 7A |
| Duty: | S1, customized | Place of Origin: | Zhejiang, China (Mainland) | Standard: | pump motor |
| Application: | pump | ||||
Product Description
When paired up with a VFD or special control system, BLDC motor allows for accurate, step-less speed control all over an extensive speed range. Not only the valves for mechanical flow control are not used, but also the flow amount and head can be controlled accurately (in real time) by speed control. Meanwhile the Speed stability is secured even when the voltage is changed by PWM control and then the output performance can not be changed. In addition, their soft-stare capability reduces the startup current to seven times current ratings, providing less strain on power and mechanical system and providing life of pumps.
From a structural standpoint, BLDC motors can be designed to easily reach IP54, IP65 or higher protection doors, allowing applicability in aggressive environments involving humidity, dust or washdowns (garden irrigation, water treatment). The lower size and weight of their compact design offers a higher power density which results in a lighter pump system. In addition, due to the absence of mechanical commutation, friction and sparks are eliminated. The motors run smoothly and quietly when used with precision electromagnetic controls. Their low levels of mechanical noise and vibration render them ideally suited to applications demanding extremely low noise levels.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.

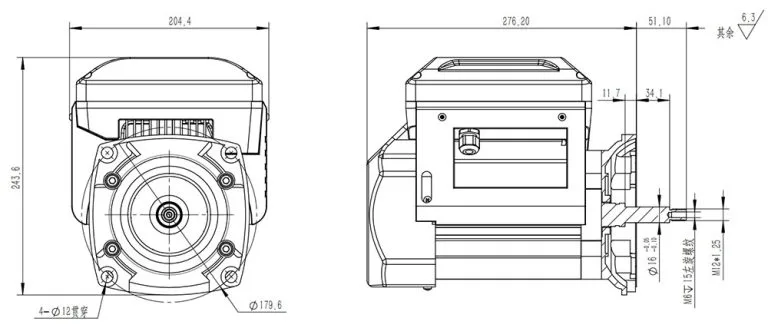

Configuration
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL150C22 | 1.5 | 220 | 12 | 2900 | 4.77 | 10 | 85 | 60 |
Advantages of Brushless DC motors
- High Energy Efficiency & Cost Savings
- Precise Speed Control & Performance-Integrated with controllers or VFD
- High Reliability & Long Service Life
- Soft Start & Stop Capability
- Compact Size & High Power Density
- Low Noise and Vibration
- Excellent Protection
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 220V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
