Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-WSRS220 | Type: | Brushless DC Motor |
| OD of Stator: | 200mm | ID of Stator: | 120.1mm | Tooth width: | 19mm |
| Number of slots: | 12 | Poles: | 8 poles or 10 poles | Multi strands: | 1pp, 2pp, 4pp |
| Power: | 2000W~30000W | Speed: | 500~5000RPM | Wire: | 100% Copper Coil |
| Insulation Class: | Class F | Certification: | CE, UL, ROHS | Standard: | IEC or Custom |
| Application: | motorcycle, fan motor, automatic equipment, servo motor, robotics, brushless motor design | ||||
Product Description
Our Australian chief designer is experienced in designing motors over 32 years, plus UL approved key raw materials and advanced equipments, convinced our customers with high performance
Stator & Rotor solutions offer.
Feel free to contact our team at info@volcanomotors.com for any technical support.

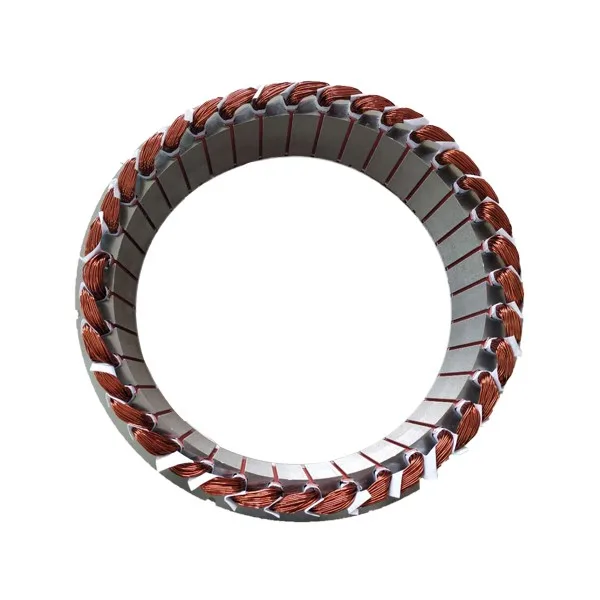

Multi Strands Showing
Motor construction
Brushless dc motor also have the stator and rotor same like the common dc motor, but it cancel the brushes. The stator used by silicon steel sheet and the rotor make by permanent magnet. It can be 2 poles to 8 poles just as you wish. Different with the brushes dc motor, the commutation of the BLDC motor is electronically controlled. We will use the hall sensors to do it. Also can use the magnetic encoder.
Specifications
| Model Number | WSRS252 |
| Outer diameter of stator | 200mm |
| Inner diameter of stator | 120.1mm |
| Tooth width | 19mm |
| Number of slots | 12 |
| Poles | 8 poles or 10 poles |
| Multi-strands | 1pp or 2pp or 4pp |
| Power | 2000W ~ 30000W |
| Speed | 500~5000RPM |
Detailed Images

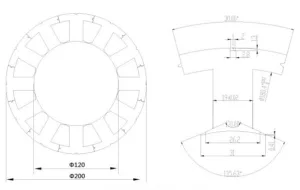

THE PICTURE SHOWS THE DIMENSIONAL STATOR

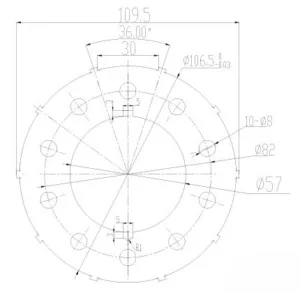

THE PICTURE SHOWS THE DIMENSIONAL ROTOR
Winding stator and rotor list
| Type | Outer diameter of stator | Inner diameter of stator | Tooth width | Number of slots | Poles | Multi-strands | Power | Speed |
| mm | mm | mm | pp | w | rpm | |||
| VOL-WSRS120 | 119 | 80 | 10 | 12 | 8 or 10 | 1 or 2 or 4 | 375-2000 | 500-5000 |
| VOL-WSRS250 | 215.2 | 136.2 | 16 | 18 | 12 or 24 or 36 | 1 or 2 or 6 | 2000-60000 | 500-5000 |
| VOL-WSRS220 | 200 | 120.1 | 19 | 12 | 8 or 10 | 1 or 2 or 4 | 2000-30000 | 500-5000 |
| VOL-WSRS180 | 167.2 | 110 | 15 | 12 | 8 or 10 | 1 or 2 or 4 | 1000-15000 | 500-5000 |
| VOL-WSRS130 M | 122 | 80 | 12.5 | 12 | 8 or 10 | 1 or 2 or 4 | 375-3000 | 500-5000 |
| VOL-WSRS130 S | 122 | 80 | 11.5 | 12 | 8 or 10 | 1 or 2 or 4 | 375-3000 | 500-5000 |
| VOL-WSRS100 | 90 | 44.6 | 6.5 | 12 | 8 or 10 | 1 or 2 or 4 | 375-2000 | 500-6000 |
| VOL-WSRS80 9S | 76.4 | 44.6 | 7.2 | 9 | 6 | 1 or 3 | 200-1000 | 500-6000 |
| VOL-WSRS80 12S | 77 | 40.5 | 7.2 | 12 | 8 or 10 | 1 or 2 or 4 | 200-1000 | 500-5000 |
| VOL-WSRS-60 9S | 56.1 | 29.7 | 6 | 9 | 6 | 1 or 3 | 150-600 | 500-6000 |
| VOL-WSRS-60 12S | 57.8 | 30.5 | 5.5 | 12 | 8 or 10 | 1 or 2 or 4 | 150-600 | 500-5000 |
Advantages of Brushed DC motors
- Reduce eddy current
- Lower noise
- Cools the stator core
- Reduces hysteresis loss
- Higher coil filling achievable. We can control 90% for High voltage, while 80% for low voltage
- Various stamping tools available to save initial design
- Large material savings compared to one piece stator
- Various grade of magnet
- Better magnetic properties, low demagnetization rate, and high magnetic consistence
- Multi-poles ring magnet: more stable & stronger magnetic flux to lower motor space and improve performance and lower spacer
Designed experiences for winding stator and rotor
For customized DC Motors, please contact our technician. Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless Customer preference
- Output power (W) Horsepower/watts/torque rated at full load speed
- Voltage (V) i.e 12v DC …….. 220v AC
- Motor speed (RPM) Revolutions per minute of the shaft at full load Voltage
- Application e.g. traction, airconditioning, etc.
- Duty Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function e.g. forward/reverse, variable speed, acceleration profile, etc.
