Product Specifications
| Brand Name: | Volcano Electric | Model Number: | IEC 0.75-71 | Type: | PMSM Motors |
| Output Power: | 0.75KW | Voltage: | 12V,24V,48V,72V,110VAC,220VAC are available | Speed Range: | 1500 RPM, 3000 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F/H |
| Enclosure: | IP54 | Poles: | 2P, 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum Frame | Efficiency: | IE2, IE3 or IE4 efficiency classes | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard PMSM motors |
| Application: | Pumps, mining, steel, textile, food, chemical, and oil and gas industries, specific applications | ||||
Product Description
In what applications do you need a permanent magnet brushless DC motor to replace a traditional AC induction motor?
Any of the following requirements:
1. Variable speed applications
2. High starting torque required
3. Low/high speed applications
4. Minimum motor size requirements
5. Custom speed requirements, allowing operation at any defined speed (AC motors have limited rated speeds: 2-pole – 3000 rpm, 4-pole – 1500 rpm @ 50 Hz, 2-pole – 3600 rpm, 4-pole – 1800 rpm @ 60 Hz).
Permanent magnet brushless DC motors are becoming increasingly popular in industrial applications.
The IEC standard PMSM motor Frame 71 750W is a series of standard permanent magnet DC motors with higher efficiency. It is designed to replace some traditional AC induction motors. With the same overall dimensions and mounting dimensions as AC motors, you can easily use our IEC standard PMSM motors in a variety of applications.
At Volcano Electric, compatible motor drivers are available, allowing you to purchase motors and controllers in one place. All motors and controllers are commissioned before shipment to ensure the entire system functions properly. This helps avoid disputes over motors and controllers from different suppliers.
IEC standard PMSM motor companies currently offer various frame sizes, including 63-frame, 71-frame, 80-frame, 90-frame, and 112-frame. More motor frames will be designed soon.
Standard Frame 71 Motors 750W Available
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Efficiency | Noise | IP Class | Frame |
| KW | V | A | RPM | N.m | % | dB | |||
| VOL-BL07A12 | 0.75 | 12 | 67.93 | 1500 | 4.78 | 92 | 62 | IP 54 | 71S |
| VOL-BL07A24 | 0.75 | 24 | 33.97 | 1500 | 4.78 | 92 | 62 | IP 54 | 71S |
| VOL-BL07A48 | 0.75 | 48 | 16.98 | 1500 | 4.78 | 92 | 62 | IP 54 | 71S |
| VOL-BL07A72 | 0.75 | 72 | 11.32 | 1500 | 4.78 | 92 | 62 | IP 54 | 71S |
| VOL-BL07A110 | 0.75 | 110 | 4.28 | 1500 | 4.78 | 92 | 62 | IP 54 | 71S |
| VOL-BL07A220 | 0.75 | 220 | 2.14 | 1500 | 4.78 | 92 | 62 | IP 54 | 71S |
| VOL-BL07B12 | 0.75 | 12 | 67.93 | 3000 | 2.39 | 92 | 62 | IP 54 | 71S |
| VOL-BL07B24 | 0.75 | 24 | 33.97 | 3000 | 2.39 | 92 | 62 | IP 54 | 71S |
| VOL-BL07B48 | 0.75 | 48 | 16.98 | 3000 | 2.39 | 92 | 62 | IP 54 | 71S |
| VOL-BL07B72 | 0.75 | 72 | 11.32 | 3000 | 2.39 | 92 | 62 | IP 54 | 71S |
| VOL-BL07B110 | 0.75 | 110 | 4.28 | 3000 | 2.39 | 92 | 62 | IP 54 | 71S |
| VOL-BL07B220 | 0.75 | 220 | 2.14 | 3000 | 2.39 | 92 | 62 | IP 54 | 71S |

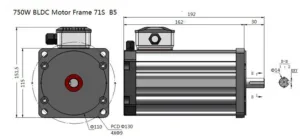

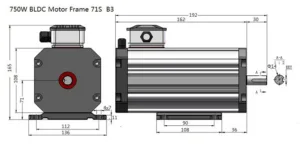

Configuration
IEC MOTOR FRAME SPECIFICATIONS
| Standard IEC Frame Motor | |||||
| Frame | Rated Power | H | A | B | L |
| 63 | 200W-750W | 63 | 100 | 80 | 130-170 |
| 71 | 370w-1.5kw | 71 | 112 | 90 | 162-222 |
| 80 | 370W-2.2KW | 80 | 125 | 100 | 190-262 |
| 90 | 370W-3KW | 90 | 140 | 125 | 190-282 |
| 100 | 370W-4.5KW | 100 | 160 | 140 | 242-332 |
| 112 | 370W-5.5KW | 112 | 190 | 140 | 262-362 |
Customized Motors
Besides of the standard IEC Motors, Volcano Electric can offer customized motor and supplier comprehensive solutions of your whole system, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
