Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.2/180-100 | Type: | Brushed DC motor |
| Output Power: | 200W | DC Voltage: | 180V | Speed Range: | 1700 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | Fan: | Optional |
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description

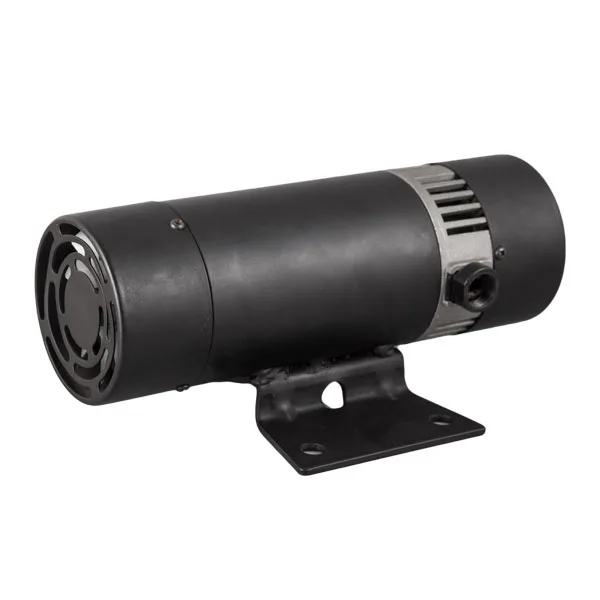

The DC0.2/180-100 motor is a brushed motor with a rated power of 200W, a rated voltage of 180V, and a rated speed of 1700RPM. It is suitable for small and medium-sized industrial equipment and specific drive scenarios. The brushed motor uses mechanical commutation, enabling rapid response to start and stop commands and adapting to the frequent process switching on production lines. The 180V voltage is suitable for industrial-grade power supply environments, such as small conveyors, industrial fans, and light material transfer pumps. It can also be used in centralized workshop power supply systems. The 200W power supply can drive the transmission mechanism of cloth winders and small printing rollers in auxiliary equipment in the textile or printing industry, precisely controlling the feed speed of fabric or paper.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.
Detailed Images
Brushed motor list
| Sort | Voltage | Speed | Output | Load | Torque |
| (V) | (RPM) | (W) | (A) | (Nm) | |
| DC0.2/24-100 | 24 | 1500 | 200 | 12 | 1.27 |
| DC0.15/24-100 | 24 | 1400 | 150 | 7 | 1.02 |
| DC0.25/36-100 | 36 | 1500 | 250 | 8 | 1.59 |
| DC0.25/24-100 | 24 | 615 | 250 | 17 | 3.88 |
| DC0.25/48-100 | 48 | 1500 | 250 | 6 | 1.59 |
| DC0.18/48-100 | 48 | 1500 | 180 | 4 | 1.14 |
| DC0.2/12-100 | 12 | 2000 | 200 | 21 | 0.59 |
| DC0.25/12-100 | 12 | 1500 | 250 | 24 | 1.59 |
| DC0.2/12-100 | 12 | 1300 | 200 | 20 | 1.59 |
| DC0.25/24-100 | 24 | 2700 | 250 | 14 | 0.88 |
| DC0.25B/24-100 | 24 | 2300 | 250 | 12 | 1.03 |
| DC0.2/24-100 | 24 | 2000 | 200 | 10 | 0.95 |
| DC0.25C/24-100 | 24 | 1700 | 250 | 13 | 1.4 |
| DC0.25D/24-100 | 24 | 1200 | 250 | 13 | 1.98 |
| DC0.25E/24-100 | 24 | 1000 | 250 | 12 | 2.38 |
| DC0.18/90-100 | 90 | 1500 | 180 | 2.5 | 1.14 |
| DC0.18/110-100 | 110 | 1500 | 180 | 2 | 1.14 |
| DC0.18/120-100 | 120 | 1500 | 180 | 1.8 | 1.14 |
| DC0.20/180-100 | 180 | 1700 | 200 | 1.5 | 1.12 |
| DC0.20B/180-100 | 180 | 1500 | 200 | 1.5 | 1.36 |
Advantages of Brushed DC motors
- Simple structure
- Easy maintenance
- Relatively simple manufacturing process
- Low cost.
- Simple control, suitable for applications where high precision is not required.
- High starting torque, suitable for equipment that requires instant starting and large loads, such as power tools and small lifting equipment.
- Wide range of applications, suitable for low-voltage and low-power applications.
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Brushed or Brushless Customer preference
- Output power (W) Horsepower/watts/torque rated at full load speed
- Voltage (V) i.e 12v DC …….. 220v AC
- Motor speed (RPM) Revolutions per minute of the shaft at full load Voltage
- Application e.g. traction, airconditioning, etc.
- Duty Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function e.g. forward/reverse, variable speed, acceleration profile, etc.
