Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.370-126 | Type: | Brushed DC motor |
| Output Power: | 1/2 HP (370W) | DC Voltage: | 12V | Speed Range: | 1700 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | Fan: | Optional |
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description
DC0.370-126 which is 1700RPM 12V 1/2HP Brushed DC Motor, The rated speed 1700RPM, rated power 1/2 HP, the voltage is 12V DC. This battery powered DC motors, requires high efficiency. Which can prolong the lifetime of battery. In designing, based on voltage, rated power, and speed, our engineer designed the motor at highest efficiency. For performance chart, you can review Performance of 1700RPM 12V 0.5 HP Brushed DC Motor.
Brushed DC Motors are used in a wide range of applications, ranging from toys to pumps. Most automatic car windows and seat adjustments are operated by a Brushed DC Motor.Brushed motors are favored in many low-to-medium power applications due to their ease of control—speed can be adjusted simply by varying the input voltage—and their relatively low manufacturing cost. The Brushed Motor has been an automotive industry favorite because of its relatively low cost and simple design. A Brushed DC Motor comes in all different sizes, and torque and speed specifications. The Brushed DC Motor can be a good candidate for virtually any motion control endeavor

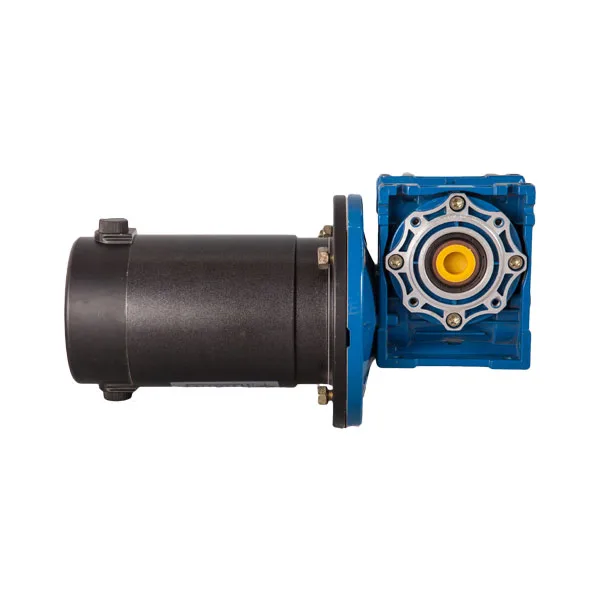

Detailed Images

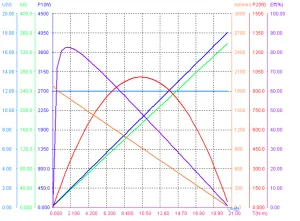

Performance of 540W 74V 1700rpm Brushed DC Motor
Brushed motor list
| Sort | Voltage | Speed | Output | Load | Torque |
| (V) | (RPM) | (W) | (A) | (Nm) | |
| DC0.37/12-126 | 12 | 1700 | 370 | 35 | 2.07 |
| DC0.54/12-126 | 12 | 1500 | 540 | 55 | 3.3 |
| DC0.375/12-126 | 12 | 1200 | 375 | 39 | 2.98 |
| DC0.75/24-126 | 24 | 3500 | 750 | 38 | 2.04 |
| DC0.54/24-126 | 24 | 2500 | 540 | 29 | 1.98 |
| DC0.54B/24-126 | 24 | 2000 | 540 | 29 | 2.8 |
| DC0.37/24-126 | 24 | 1700 | 370 | 19 | 2.07 |
| DC0.54C/24-126 | 24 | 1500 | 540 | 31 | 3.43 |
| DC0.4/24-126 | 24 | 1200 | 400 | 21 | 3.18 |
| DC0.37/27-126 | 27 | 1500 | 370 | 16 | 2.35 |
| DC0.37/29-126 | 29 | 1100 | 370 | 15 | 3.21 |
| DC0.375/42-126 | 42 | 1400 | 375 | 11 | 2.55 |
| DC0.54/48-126 | 48 | 2000 | 540 | 14 | 2.8 |
| DC0.54B/48-126 | 48 | 1700 | 540 | 13 | 3.03 |
| DC0.375/48-126 | 48 | 1500 | 375 | 9 | 2.38 |
| DC0.54/60-126 | 60 | 1800 | 540 | 11 | 2.86 |
| DC0.54B/60-126 | 60 | 1500 | 540 | 9 | 3.43 |
| DC0.54/74-126 | 74 | 1700 | 540 | 9 | 3.03 |
| DC0.5/90–126 | 90 | 1600 | 500 | 6 | 2.98 |
| DC0.375/90-126 | 90 | 1750 | 375 | 5 | 2.04 |
| DC0.54/90-126 | 90 | 1700 | 540 | 7 | 3.03 |
| DC0.375/110-126 | 110 | 3200 | 375 | 10 | 1.11 |
| DC0.375B/110-126 | 110 | 1750 | 375 | 4 | 2.04 |
| DC0.54/110-126 | 110 | 1700 | 540 | 6 | 3.03 |
| DC0.375C/110-126 | 110 | 1500 | 375 | 4 | 2.38 |
| DC0.54/150-126 | 150 | 3200 | 540 | 4 | 1.61 |
| DC0.54/180-126 | 180 | 2200 | 540 | 4 | 2.34 |
| DC0.54B/180-126 | 180 | 2000 | 540 | 4 | 2.57 |
| DC0.375/180-126 | 180 | 1700 | 375 | 2.8 | 2.1 |
| DC0.54C/180-126 | 180 | 1500 | 540 | 4 | 3.43 |
| DC0.375B/180-126 | 180 | 1500 | 375 | 2.8 | 2.38 |
| DC0.375/250-126 | 250 | 1500 | 375 | 2 | 2.38 |
| DC0.54/300-126 | 300 | 1200 | 540 | 2 | 4.29 |
Advantages of Brushed DC motors
- Simple structure
- Easy maintenance
- Relatively simple manufacturing process
- Low cost.
- Simple control, suitable for applications where high precision is not required.
- High starting torque, suitable for equipment that requires instant starting and large loads, such as power tools and small lifting equipment.
- Wide range of applications, suitable for low-voltage and low-power applications.
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Brushed or Brushless Customer preference
- Output power (W) Horsepower/watts/torque rated at full load speed
- Voltage (V) i.e 12v DC …….. 220v AC
- Motor speed (RPM) Revolutions per minute of the shaft at full load Voltage
- Application e.g. traction, airconditioning, etc.
- Duty Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function e.g. forward/reverse, variable speed, acceleration profile, etc.
