Product Specifications

Any one of the below requirements, you have to choose a reasonable permanent magnet motors.

1. Variable speed application
2. Require High Start Torque
3. Low /High speed application
4. Minimize Motor size demands
5. Customized Speed, work at any defined speed, ( the rated speed of AC motor is limited, 2 poles-3000RPM, 4 poles -1500RPM @50HZ, 2 poles-3600RPM, 4 poles -1800RPM @60HZ)
6. Battery driven required

Product Description

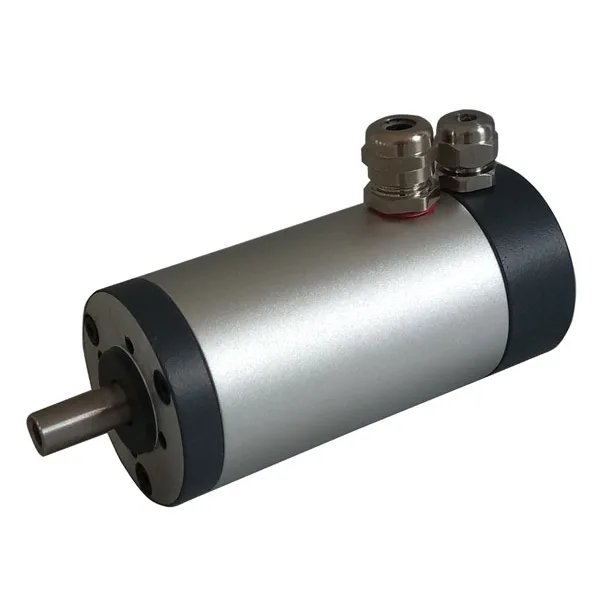

PMSM 0.12-52 is one of 3 quantum series permanent magnet motors. The out diameter is 52mm, with shaft diameter 8h6. The length of the motor is customized by various power applications.

Quantum series permanent magnet motors are one of our main market oriented permanent magnet motors, which are designed for automotive pump, textile machinery industry. Based on various demands, this series permanent magnet motors are divided into 3 motor models, PMSM-42, PMSM52 and PMSM-62. You can refer to the drawing and properties.

Characteristics of Quantum series permanent magnet motors

Using the international advanced materials technology, Produce high speed, high torque small motors.

Features:

1. Adopt over 5 pairs magnetic poles design, the ability to start and stop fast.
2. High efficiency ≈90%
3. Achieve high output power in small motor frame
4. Can be equipped with the encoder to achieve servo control
5. Economic benefits, high cost-effective

Compared to the conventional motors in the market, the rotor is made by sintered neodymium Magnet halbach ring. Which the BH max. reaches to 40 MGOe, almost 4 times of bonded NdFeB Magnet rotor struction. It increase the magnetic density almost 4 times. The magnetic density is stronger, and it can reduce the coils of stator.

Hence, you can get the following benefits with this PMSM motor.

1. Minimized Motor size. ( smaller than conventional motors)
2. Start faster
3. Minimize the copper loss
4. Higher efficiency

120W 12VDC Small Size Permanent Magnet motor is designed for pump in automotive, this motor is replacing the conventional electric motors. For more specifications on this leading motors, please contact our technical team by email info@volcanomotors.com

This PMSM motors can be also well used in other textile machinery, packing machine, automatic conveyor belt etc.

Generally, whatever standard motors or customized motors, our professional team can help you work them out.

Advantage of PMSM motors

1. Lower maintenance and longer lifetime- no brush and commutator erosion
2. Lower noise-the elimination of brush contact
3. Higher power to weight ratio
4. Higher efficiency ( in general higher than 90%)
5. Lower temperature rise-more efficient heat dissipation due to winding construction
6. Reduction of EMI
7. Adopt over 5 pairs magnetic poles design, the ability to start and stop fast.

Customized Motors

For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:

• Brushed or Brushless: Customer preference
• Output power (W): Horsepower/watts/torque rated at full load speed
• Voltage (V): i.e 12V DC …….. 450V AC
• Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
• Application: e.g. traction, air condition, etc.
• Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
• Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
• Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
