Product Specifications
| Brand Name: | Volcano Electric | Model Number: | DC0.1-80 | Type: | Brushed DC motor |
| Output Power: | 100W | DC Voltage: | 12V | Speed Range: | 1750 RPM |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | IE 4.0 | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC standard or NEMA standard |
| Application: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Traction Motor, Solar Pump DC systems, bus A/C systems , other | ||||
Product Description

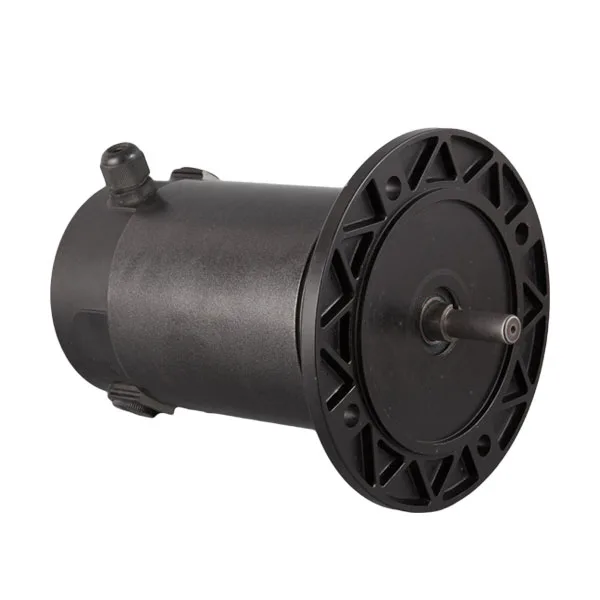

This 12 V, 100 W brushed DC motor offers a costeffective drive solution for a wide range of applications. It is suitable for use with pulleys, belts, pumps, water heaters, and various machinery. Built with permanent magnets, the motor delivers the torque needed to meet your application’s demands.

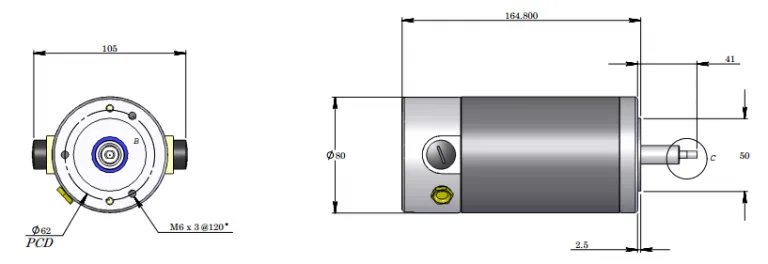

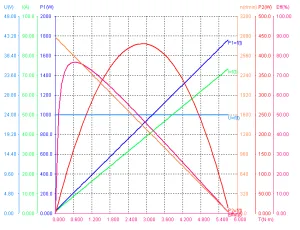

Detailed Images
Brushed motor list
| Model | Power Kw |
Voltage V |
Current A |
Speed Rpm |
Nominal torque N.m |
| DC0.1-80 | 0.1 | 12 | 10 | 1750 | 0.54 |
| DC0.1-80 | 0.1 | 24 | 5 | 2400 | 0.39 |
| DC0.1-80 | 0.1 | 36 | 3 | 1900 | 0.5 |
| DC0.1-80 | 0.1 | 48 | 2 | 2200 | 0.43 |
| DC0.1-80 | 0.1 | 180 | 1 | 2500 | 0.38 |
| DC0.1-80 | 0.1 | 180 | 1 | 2000 | 0.47 |
| DC0.11-80 | 0.11 | 24 | 6 | 2500 | 0.4 |
| DC0.12-80 | 0.12 | 12 | 14 | 2000 | 0.57 |
| DC0.12-80 | 0.12 | 24 | 7 | 3000 | 0.38 |
| DC0.12-80 | 0.12 | 36 | 4 | 2000 | 0.57 |
| DC0.12-80 | 0.12 | 48 | 2 | 2200 | 0.43 |
Advantages of Brushed DC motors
- High performance and efficiency
- Compact size with powerful output
- Easy brush maintenance access
- Sleek, modern design
- Custom specifications available
Customized Motors
For custom built DC motors, please contact our team. To prepare an accurate quotation, kindly provide the following details:
- Motor type – Brushed or Brushless
- Output power – horsepower, watts, or torque at full‑load speed
- Voltage – for example, 12 V DC to 220 V AC
- Speed (RPM) – shaft speed at full load voltage
- Application – such as traction, cooling, or other uses
- Duty cycle – most motors are rated for continuous duty; some applications may require intermittent duty
- Configuration/Frame – IEC standard; flange and shaft can be manufactured to your drawings
- Controller functions – forward/reverse, variable speed, acceleration profile, etc.
