Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL100C12 | Type: | Brushless DC Motor |
| Output Power: | 1KW | DC Voltage: | 12V | Speed Range: | 3000 RPM |
| Controller: | Customized, Optional | Brake: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper Coil |
| Current: | Sensor: | Hall sensor | Certification: | CE,UL,ROHS | |
| Housing: | Aluminum frame | Efficiency: | up to 90% | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / Custom |
| Application: | Boat, Car, EV, Fan, Home Appliance, Traction Motor, Pump, bus A/C systems ,Other | ||||
Product Description
This 12V, 1000W, 1500RPM Volcano BLDC motor is a low-voltage, high-efficiency motor. It is part of our standard production line, meaning we can manufacture it using existing tooling—no need for costly new model setups. Because it’s a standard motor, we can provide motor drawings and test reports anytime you need them. The lead time for this Volcano standard motor is 4 weeks after payment is received.
This motor is designed for electric vehicle applications, operates under continuous duty, and has an IP54 protection rating. It delivers a rated torque of 6.37 Nm and a load current of 71.7A. The rotor contains 8 magnets.
If you have interesting for this motor, please feel free to contact us by info@volcanomotors.com

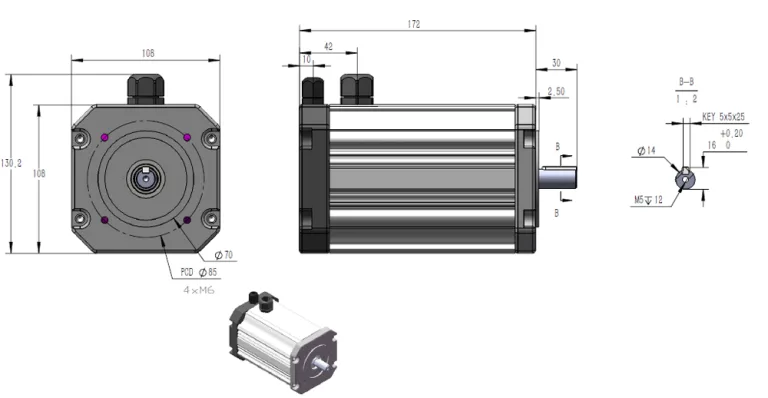

Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL090C24 | 0.9 | 24 | 44.6 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C12 | 1 | 24 | 71.7 | 1500 | 6.37 | 8 | 85 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C72 | 1.5 | 72 | 23.5 | 3200 | 4.48 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL250C24 | 2.5 | 24 | 123 | 3350 | 7.13 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- Less Maintainance and longer lifespan – no brush or commutator erosion
- Lower noise – No brush contact
- Higher power to weight ratio
- Higher efficiency-Generally above 90%
- Lower temperature rise – more efficient heat dissipation due to winding construction
- Wide speed range- no limit of brushes and commutator
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
