Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL050C110 | Type: | Brushless DC Motor |
| Output Power: | 500W | DC Voltage: | 110V | Speed Range: | 1500 RPM |
| Controller: | Customized, Optional | Brake: | Optional | Insulation Class: | Class B/F/H |
| Enclosure: | IP44 / IP54 | Poles: | 4P, 6P, 8P… | Wire: | 100% copper |
| Housing: | Aluminum | Efficiency: | up to 84% | ||
| Duty: | S1 (continuous) | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / NEMA |
| Application: | Boat, Car, EV, Fan, Home Appliance, Traction Motor, Pump, bus A/C systems ,Other | ||||
Product Description

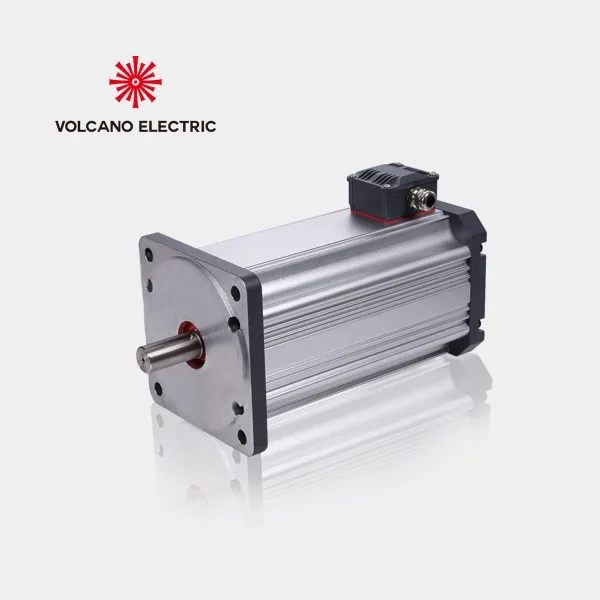

Volcano Electric BLDC Motor 110V 500W 1500RPM, duty continues, halls sensor, no controller, it provides 3.18Nm at rated speed of 1500RPM, the motor working under continues duty 1. Gross weight of the motor is round 5kgs. Mounting method of this motor is B15, frame model is 195L.
We have different mounting method and different frame size depends on our clients final application. We are able to make NEMA series and IEC standard frame series. We aim to make higher efficiency motor up to more than 90%. For this motor, it gives round 85% efficiency. The motor come with out a controller but with hall sensor.
BLDC Motor is widely used in many industries. It has power-saving advantages compared with other type motors. Also its running speed can be controlled. Simply speaking, with a suitable controller, we can make the motor running under our mind. In another way, precision control can also save energy, for these motors connect with battery power, in this way, the motor can also save the battery life.
If you have interesting for this motor, please feel free to contact us by info@volcanomotor.com
Volcano Electric brushless DC motor 110V 500W 1500RPM delivers a rated torque of 3.18Nm at 1500RPM and operates under continuous duty (S1). It includes a Hall sensor but does not come with a controller. The motor weighs approximately 5kg and is built with a B15 mounting and a 195L frame.
We offer various mounting options and frame sizes depending on the specific requirements of your application. Both NEMA and IEC frame standards are available upon request.
We aim to deliver motors with high efficiency over 90%. This particular model achieves around 85% efficiency. BLDC motors are known for their energy savings compared to other motor types and offer excellent speed control. When equiped with a suitable controller, the motor can be precisely controlled for both performance and energy optimization. This is especially beneficial when used with battery power, helping to extend battery life.
If you have interesting for this motor, please feel free to contact us by info@volcanomotors.com

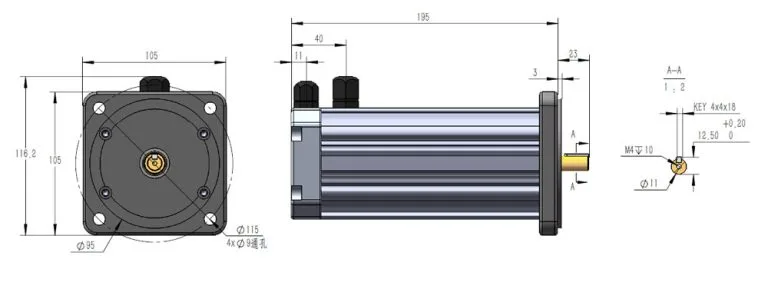

Detailed Images
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL020C24 | 0.2 | 24 | 10.7 | 1500 | 1.27 | 8 | 89 | 62 |
| VOL-BL050C110 | 0.5 | 110 | 5.9 | 1500 | 3.18 | 8 | 84 | 60 |
| VOL-BL100C30 | 1 | 30 | 43 | 1200 | 7.96 | 8 | 88 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.3 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.7 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.5 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C310 | 1.5 | 310 | 6.2 | 3500 | 4.09 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.6 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL410C48 | 4.1 | 48 | 110.2 | 2580 | 15.18 | 8 | 88 | 61.5 |
Advantages of Brushless DC motors
- Less Maintenance and Long Service Life – No brushes or commutator wear
- Silent operation – No brush contact, resulting in significantly reduced noise
- High Power-to-Weight Ratio
- High Efficiency – In general higher than 90%
- Low Temperature Rise – Better heat dissipation due to optimized winding design
- Reduced Electromagnetic Interference (EMI)
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Motor Type – Brushed or brushless (based on your preference)
- Output Power – Specify in watts, horsepower, or required torque at rated speed
- Voltage – e.g. 12V DC, 48V DC, 220V AC
- Speed – Required RPM at full load voltage
- Application – For example: Traction, pumping, etc.
- Duty Cycle – Most motors are rated for continuous operation, but we can also supply motors for intermittent use
- Frame/Configuration – Based on IEC standards; flange and shaft can be customized to your drawings
- Controller Functions – Such as forward/reverse, variable speed, acceleration curve, etc.
