Product Specifications
| Brand Name: | Volcano Electric | Model Number: | VOL-BL100A110 | Type: | Brushless DC Motor |
| Output Power: | 1000W | DC Voltage: | 110V | Speed Range: | 1500 RPM |
| Current: | 5.71A | Torque: | 6.37Nm | Sensor: | Hall sensor |
| Controller: | Customized, Optional | Braker: | Optional | Insulation Class: | Class F |
| Enclosure: | IP54, IP55 | Poles: | 8P | Wire: | 100% Copper |
| Housing: | Aluminum | Efficiency: | up to 92% | Certification: | CE, UL |
| Duty: | S1 | Place of Origin: | Zhejiang, China (Mainland) | Standard: | IEC / Custom |
| Application: | Boat, Electric Vehicle, Scooter, Sightseeing cars, Home Appliance, Pump, bus A/C systems ,Other | ||||
Product Description

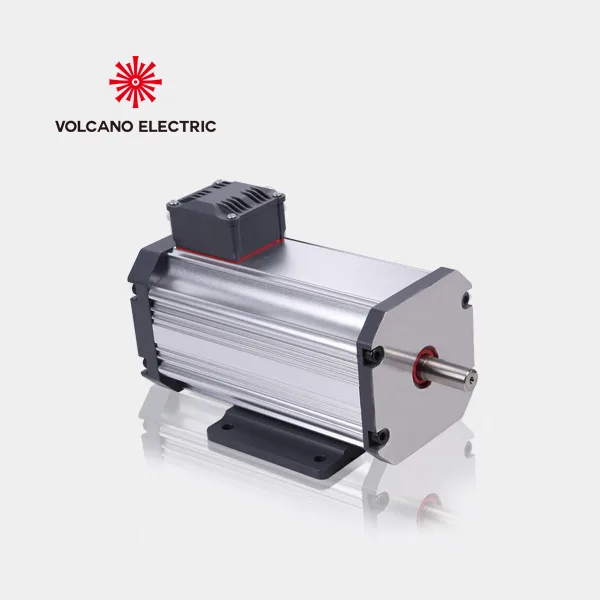

VOL-BL100A110, is a 1000W brushless dc motor offering a great combination of torque with better efficiency and response to control at 110V DC, can runs with a stable speed at about 1500RPM. Featuring an 8 poles configuration. Perfect for industrial machines i.e (small conveyor systems and precision machinery etc) where fixed speed operation is required. For commercial turbine vents and large fans and pumps, it is ideal to lift larger quantities of hot air out of the building, and may be easily integrated with standard electric systems with its 110V compatibility. The 8 poles design improves low-speed stability, an important benefit for controlled motion applications, ranging from automated door mechanisms to medical equipment peripherals.
Volcano Electric can customize motors according to your needs and look forward to your inquiries. If you have any questions or needs, please feel free to contact our team via email or whatsapp.
Configuration
Brushless motor list
| Motor type | Output | Voltage | Load | Speed | Rated Torque | Poles | Efficiency | Noise |
| KW | V | A | RPM | N.m | % | dB | ||
| VOL-BL075B48 | 0.75 | 48 | 16.98 | 3000 | 2.39 | 8 | 92 | 62 |
| VOL-BL090C24 | 0.9 | 24 | 44.60 | 2600 | 3.31 | 8 | 84 | 60 |
| VOL-BL100C48 | 1 | 48 | 24.50 | 2500 | 3.82 | 8 | 85 | 60 |
| VOL-BL100A110 | 1 | 110 | 5.71 | 1500 | 6.37 | 8 | 92 | 60 |
| VOL-BL120C24 | 1.2 | 24 | 63.30 | 4200 | 2.73 | 8 | 79 | 60 |
| VOL-BL120C36 | 1.2 | 36 | 39.70 | 2270 | 5.05 | 8 | 84 | 60 |
| VOL-BL125C24 | 1.25 | 24 | 62.00 | 3200 | 3.73 | 8 | 84 | 60 |
| VOL-BL130C36 | 1.3 | 36 | 40.12 | 3200 | 3.88 | 8 | 90 | 60 |
| VOL-BL150C24 | 1.5 | 24 | 73.50 | 2590 | 5.53 | 8 | 85 | 61 |
| VOL-BL150C48 | 1.5 | 48 | 33.97 | 1800 | 7.96 | 8 | 92 | 61 |
| VOL-BL150C72 | 1.5 | 72 | 23.50 | 3200 | 4.48 | 8 | 89 | 61 |
| VOL-BL200C24 | 2 | 24 | 98.60 | 3360 | 5.68 | 8 | 84.5 | 61.5 |
| VOL-BL250C24 | 2.5 | 24 | 123.00 | 3350 | 7.13 | 8 | 84.7 | 61.5 |
Advantages of Brushless DC motors
- High speed and wide speed range
- Long life(more than 50,000 hours)
- Higher efficiency ( in general higher than 90%)
- High control accuracy
- Low electromagnetic interference
- Wide range of applications
- Low failure rate
- Lower noise – the elimination of brush contact
Customized Motors
For customized Motors, please contact our technician, Ordinary, we have to know the following information to get a professional proposal:
- Brushed or Brushless: Customer preference
- Output power (W): Horsepower/watts/torque rated at full load speed
- Voltage (V): i.e 12V DC …….. 450V AC
- Motor speed (RPM): Revolutions per minute of the shaft at full load Voltage
- Application: e.g. traction, air condition, etc.
- Duty: Most motors are rated continuous. Some applications however may use motors designed for intermittent duty
- Configuration/Frame: Our products are according to IEC standard, we also can customize the flange and shaft according to the customer drawing
- Controller function: e.g. forward/reverse, variable speed, acceleration profile, etc.
